Home > products > RJ45 Modular Jack > HFJ11-1G02EAA Single Port Ethernet RJ45 Female Connector LPJG0805CNL

HFJ11-1G02EAA Single Port Ethernet RJ45 Female Connector LPJG0805CNL

Product Details

Place of Origin: China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: HFJ11-1G02EAA

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/25K

Price: $0.05-$1.28

Packaging Details: 50pcs/tray,1200pcs/carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 4200K-PCS/Month

Get Best Price
Highlight:

rj-45 ethernet jack

,

industrial rj45 connector

Part Number:
HFJ11-1G02EAA
Cross:
LPJG0805CNL
Manufacturer:
LINK-PP
Latch:
Tab Down
Samples:
Available 1-5 Pcs
File:
PDF/3D/ISG/Stp/Step/Datasheet
Part Number:
HFJ11-1G02EAA
Cross:
LPJG0805CNL
Manufacturer:
LINK-PP
Latch:
Tab Down
Samples:
Available 1-5 Pcs
File:
PDF/3D/ISG/Stp/Step/Datasheet

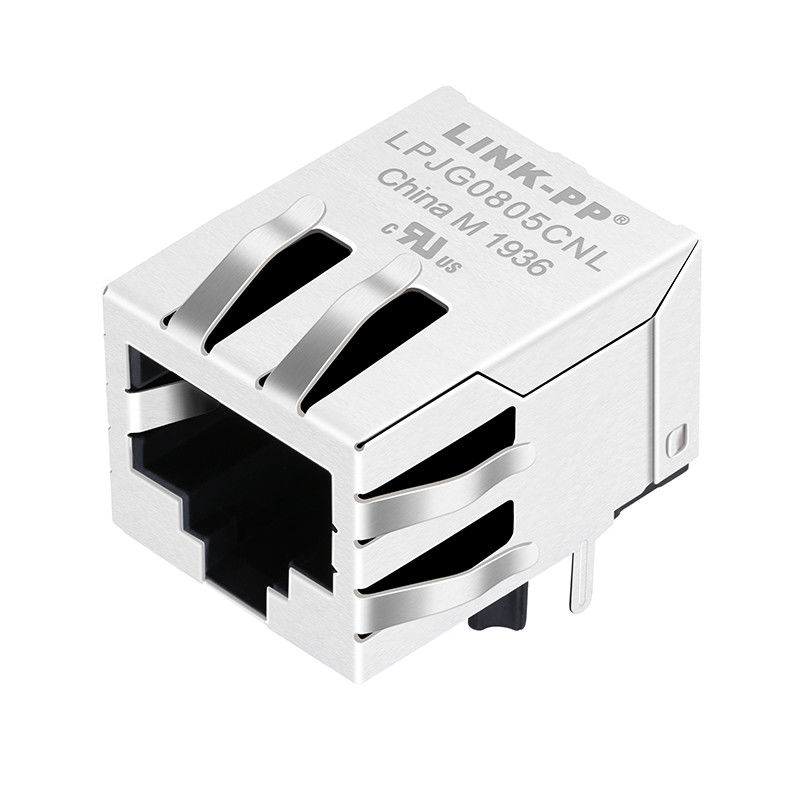

HFJ11-1G02EAA Single Port Ethernet RJ45 Female Connector LPJG0805CNL
HFJ11-1G02EAA Single Port Ethernet RJ45 Female Connector LPJG0805CNL



Single Port RJ45 Connector With 10/100/1000Base-t Magnetics,Without LED,Tab Down,RoHS
LINK-PP Part Number LPJG0805CNL
Part Number HFJ11-1G02EAA
Application-Lan ETHERNET(NoN PoE)
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Diodes NO DIODES
LED Option WITHOUT
Latch TAB DOWN
Number of Ports 1X1
PCB Mount Angle SIDE ENTRY
Package Height (mm) 13.40
Package Length (mm) 21.30
Package Width (mm) 15.90
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITH
Speed WITHOUT
Temperature 0 TO + 70℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT



Why Choose Us

World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers



Main Customer

Design for Ti , Intel , Samsung , Fluke , Jabil , Flextronics ,Cypress, Freescale,EKF.......



Main Production Lines
• 10/100/1000/10GBase-T Lan Isolation Transformer and Filter

• Rj45 Modular Jack With Integrated 10/100/1000/10G Magnetics
• Magnetic Rj45 Jack with POE/POE+;IEEE823.3af/IEEE802.3at
• Lan Transformer With POE/POE+;IEEE823.3af/IEEE802.3at
• T1/E1,T3/DS3/E3/STS-1 Interface Lan transformer
• ISDN,HDSL,ADSL and VDSL Transformer and splitter

• Optical Transceivers



Professional Certification

• ISO 9001:2008

• UL Certification

• Reach Cetitifaction

• RoHS Compliance

• Active Environmental Policy



100% Guarantee Qualtiy

• Manufactured Under Strict Controls.

• 100% Tested (Not Just Batch Tested)

• LINK-PP Is OEM Of TE (Tyco) For 9 Years

• Successful Customer: Texas Instruments Samsung Cisco Siemens And Intel…

• LINK-PP Is The Preferred Supplier Of TI (Texas Instruments)

• Quality Guarantee:6 Years



Competitive Price And Service

• More Competitive Price Than Pulse Tyco Halo And Amphenol

• Delivery Time:2-3 Weeks After Orders

• Free Samples Are Available

• Provide New Design For Customer Requirements

• 90% Off Shipping Cost By DHL UPS DEDEX Or TNT



RJC-0777TR 1 Port RJ45 Single Port Modular jack Connector With LEDs LPJ4011ABNL



RJ45 knowledge science:

A registered jack (RJ) is a standardized physical network interface for connecting telecommunications or data equipment. The physical connectors that registered jacks use are mainly of the modular connector and 50-pin miniature ribbon connector types. The most common twisted-pair connector is an 8-position, 8-contact (8P8C) modular plug and jack commonly referred to as an RJ45 connector.



An 8-pin/8-position plug or jack is commonly used to connect computers onto Ethernet-based local area networks (LAN).

Two wiring schemes–T568A and T568B–are used to terminate the twisted-pair cable onto the connector interface.
