Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: LINK-PP
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/60K
Price: $0.11-$24
Packaging Details: Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 180K/Month
Datasheet: |

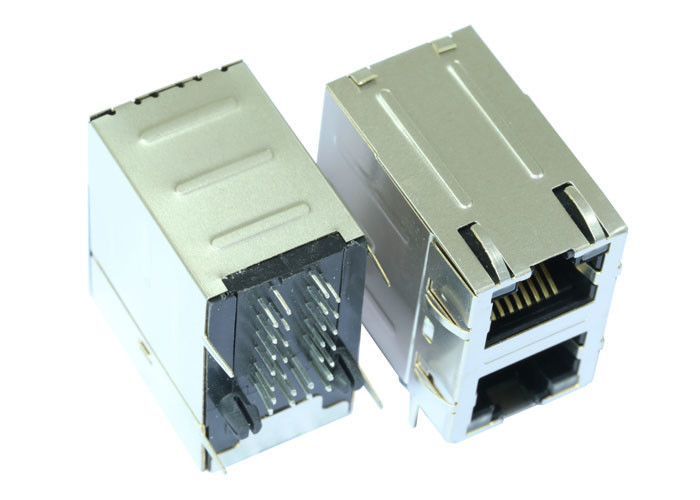

100/1000Base-T |
Family: |
2x1 Stacked RJ45 |
Application: |
HUB, PC Card, Switch, Router Etc |
Mounting: |
Side Entry (Right Angle) |
Category: |
Stacked RJ45 |
File: |
PDF/3D/Step/IGS/Price/Cross |
Datasheet: |
100/1000Base-T |
Family: |
2x1 Stacked RJ45 |
Application: |
HUB, PC Card, Switch, Router Etc |
Mounting: |
Side Entry (Right Angle) |
Category: |
Stacked RJ45 |
File: |
PDF/3D/Step/IGS/Price/Cross |
Product parameters:
| Application-Lan | ETHERNET(NoN PoE) |
| AutomDX | YES |
| Bst Circuit | YES |
| Configuration RX | T,C |
| Configuration TX | T,C |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Cores per Port | 8 |
| Diodes | NO DIODES |
| LED Option | YELLOW/GREEN |
| Latch | TAB UP/TAB DOWN |
| Number of Ports | 2X1 |
| PCB | FR4 |
| PCB Mount Angle | SIDE ENTRY |
| PCB Retaining Post | T POST |
| Package Height (mm) | 26.90 |
| Package Length (mm) | 33.80 |
| Package Width (mm) | 16.80 |
| Pin Type | THT SOLDER |
| RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search | YES |
| Shield EMI Tabs | WITH |
| Speed | 1000 Base-t |
| Temperature | -40 TO + 85℃ |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
Applications:
FAQ
Q: How long Delivery time?
A: RJ45/RJ11 Series: 12~20 days
SFP Series: 25~30 Days USB Series: 7~15 days
Connector: 7~15 days
Q: How can I get a quotation?
A: It is helpful for us to recommend the right item if we know your detailed requirements
(number of ports, shielded or non-shielded, led or dual LEDs, with or without transformer, etc).
Drawing and quotation will be sent accordingly. Of course, it is best if we have your drawing.
Q: Can I have samples?
A: Samples are available for evaluation.
Q: Is OEM & ODM available?
A: OEM&ODM are welcome.
