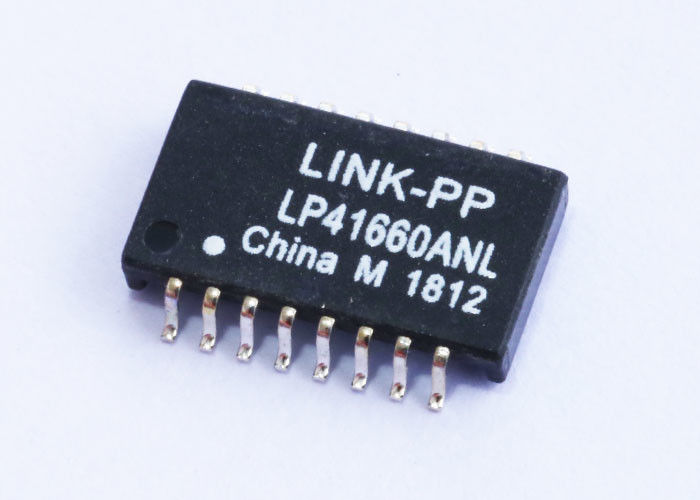

LP41660ANL 10/100Base-tx POE+ Magnetics Transformer , 16Pins SMT Filter

Product Details

Place of Origin: Guangdong,China

Brand Name: LINK-PP

Certification: UL,RoHS,Reach,ISO

Model Number: LP41660ANL

Payment & Shipping Terms

Minimum Order Quantity: 400/2000/10K/25K

Price: $0.06-$3.2

Packaging Details: T&R

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 3KK/Month

Get Best Price
Highlight:

power over ethernet transformer

,

ethernet transformer

Specifications:
LP41660ANL
P/N:
LP41660ANL
Mounting:
SMT
Ethernet:
Power 10/100base-T
Measure:
12.80x9.45x3.60mm
Samples:
Free
Archivi Disponibili:
PDF/3D/ISG/Stp/Step/Datasheet
Specifications:
LP41660ANL
P/N:
LP41660ANL
Mounting:
SMT
Ethernet:
Power 10/100base-T
Measure:
12.80x9.45x3.60mm
Samples:
Free
Archivi Disponibili:
PDF/3D/ISG/Stp/Step/Datasheet
LP41660ANL 10/100Base-tx POE+ Magnetics Transformer , 16Pins SMT Filter
LP41660ANL 10/100Base-tx POE+ Magnetics Transformer , 16Pins SMT Filter



  1. Lan Magnetics Power Over 10/100Base-tx Ethernet+
  2. Isolation Voltage:1500Vrms
  3. 10/100M Lan Transformer with POE/POE+
  4. Current 600mA-720mA Supportive
Electrical Specifications (25):
1. Turns Ratio50KHz, 0.5V
    Chip side: Line side=1CT: 1CT+_2%
2. Inductance (Ls) 100KHz, 0.1V, 12mA DC Bias:
    Chip side: 350uH Min
3. Insertion Loss1-100MHz: -1.4dB Max
4. Return Loss1-30MHz: -16dB Min
            40MHz: -14.4dB Min
            50MHz: -13.1dB Min
            60-80MHz: -12dB Min
            100MHz: -10dB Min
5. Differential to Common Mode Rejection:
            30MHz: -45dB Min
            60MHz: -40dB Min
            100MHz: -35dB Min
6. Crosstalk30MHz: -40dB Min
             60MHz: -35dB Min
             100MHz: -30dB Min
7. Hi-Pot: 1500Vrms, 0.5mA, 1Sec
    Chip side to Line side

Applications:

Used for networking and communication equipments such as HUB, PC card, Switch,
Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem

LP41660ANL 10/100Base-tx POE+ Magnetics Transformer , 16Pins SMT Filter
