Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: S558-5500-77
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Specifications: |
S558-5500-77 |
P/N Cross: |
LP6080ANLE |
Ethernet: |
2x 1000BaseT |
Mounting: |
SMD |
Samples: |
Free |
Files: |
Datasheet / PDF /3D Step , IGS |
Specifications: |
S558-5500-77 |
P/N Cross: |
LP6080ANLE |
Ethernet: |
2x 1000BaseT |
Mounting: |
SMD |
Samples: |
Free |
Files: |
Datasheet / PDF /3D Step , IGS |

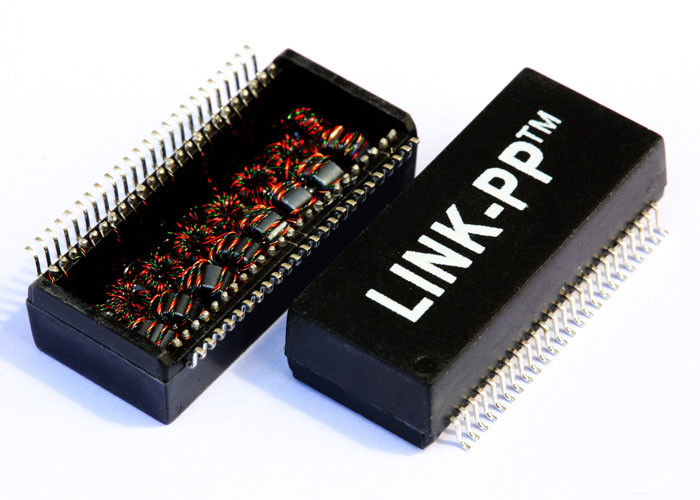

| Dual Port, 1000 BASE-T Ethernet Transformer Modules & PoE+, SMD,Rohs | |
| LINK-PP Part Number | LP6080ANLE |
| Belfuse Part Number | S558-5500-77 |
| Speed | 1000BASE-T |
| Number of Ports | DUAL |
| Application - LAN | ETHERNET (PoE+) |
| Package | SMD |
| Temperature | - 40 TO + 85 |
| AutomDX | YES |
| Comment | SAME AS NL VERSION |
| Configuration RX | T,C,S |
| Configuration TX | T,C,S |
| Construction | OPEN FRAME |
| Cores Per Port | 16 |
| Package Height (Inches) | 0.275 |
| Package Height (mm) | 7.00 |
| Package Length (Inches) | 1.102 |
| Package Length (mm) | 28.00 |
| Package Width (Inches) | 0.606 |
| Package Width (mm) | 15.40 |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
Other Compatible PARTS.
| 749014013 | 749010040 | 749050010U | 000-7333-30R-LF1 |
| 7490100110A | 749013011 | 000-7090-37R-LF1 | 000-7315-37R/-LF1 |
| 7490100111A | 749013040 | 7490100111 | 000-7382-35R/-LF1 |
Product Warranty
1. Guarantees 100% compliance CE,Rohs
2. Lenth:Custom.
3. Molded-strain relief construction for flexible movement, durability, and fit.
4. Reduces cross talk and interference with aluminum undermold contacts
Packaging & Shipping
1. any items want to order. Please contact us. And confirm the order details and lead time.
2. Terms of Shipment:
Before ordering please contact us to confirm your preferred shipment method. Items are only shipped after payment is confirmed.
3. Shipping Companies: We support shipment by "EMS" "DHL" "UPS" "FEDEX" "TNT" "SF", if you have your own express account that's would be very simple. If you need help selecting a fast and reliable shipping company, please contact us direct and we will do our best to help
4.Packing could be PE bag or Blister Card, depend on what product you ordered
Our Services
1. OEM/EDM service
2. Fast delivery
3. Most of the payment are accepted
4. Design and produce goods according to clinet's requirement.
