SS73800-017F Stacked RJ45 8p8c Ethernet 2x1 Ports Shielded LPJE17208CNL

Product Details

Place of Origin: China

Brand Name: LINK-PP

Certification: UL,RoHS,Reach,ISO

Model Number: SS73800-017F

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/60K

Price: $0.11-$24

Packaging Details: Tray

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 180K/Month

Get Best Price
Highlight:

stacked rj45 connectors

,

modular jacks rj45

Spec TE:
SS73800-017F
Alternate:
LPJE17208CNL
Category:
Stacked RJ45 2x1
Files:
PDF / Datasheet / 3D / IGS / Step /Stp
Application:
HUB, PC Card, Switch, Router Etc
Cross Rf:
LPJE17208CNL = SS73800-017F
Spec TE:
SS73800-017F
Alternate:
LPJE17208CNL
Category:
Stacked RJ45 2x1
Files:
PDF / Datasheet / 3D / IGS / Step /Stp
Application:
HUB, PC Card, Switch, Router Etc
Cross Rf:
LPJE17208CNL = SS73800-017F
SS73800-017F Stacked RJ45 8p8c Ethernet 2x1 Ports Shielded LPJE17208CNL
SS73800-017F Stacked RJ45 8p8c Ethernet 2x1 Ports Shielded LPJE17208CNL
  • 2X1 Port stacked RJ45 Connector
  • Up and Down 2 ports RJ45 Jack
  • Cross SS73800-017F Pin to Pin Equivalent LPJE17208CNL
2X1 Port 8P8C RJ45 Female Connector without Integrated Magnetics, Without LED,Tab Up/Down,RoHS
LINK-PP Part Number LPJE17208CNL
Other Part Number SS73800-017F
Application-Lan ETHERNET(NoN PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port NON
Diodes NO DIODES
LED Option without LEDS
Latch TAB UP/TAB DOWN
Number of Ports 2X1
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (Inches) 1.004
Package Height (mm) 25.50
Package Length (Inches) 1.122
Package Length (mm) 28.50
Package Width (Inches) 0.680
Package Width (mm) 17.58
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITH
Speed NON
Temperature - 40 TO + 85℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT



Applications For Terminal User

Designed to support applications, such as ADSL modems, LAN-on-Motherboard. Networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem,Call Center solutions , Complex set top boxes , VOIP gateways setup,Border Gateway Protocol,fast ethernet switch ...


Competitive Advantage:
16 years production experience,
2600 staff,
100% test
Flexible delivery time

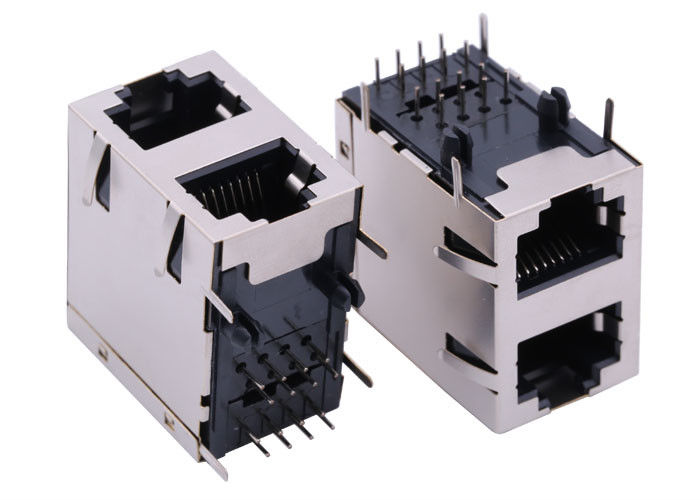

SS73800-017F	Stacked RJ45 8p8c Ethernet 2x1 Ports Shielded LPJE17208CNL 0
