Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: HR915330A
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.05-$1.28
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 4200K-PCS/Month

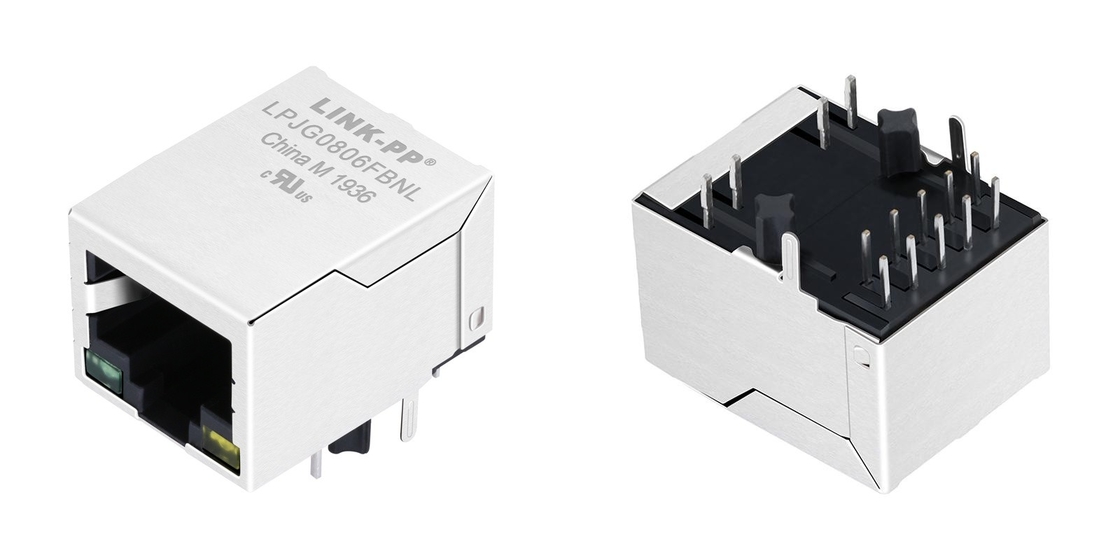

LINK-PP P/N: |
LPJG0806FBNL |
Equivalent P/N: |
HR915330A |
Speed: |
10/100 Base-T |
PoE Function: |
Non-PoE |
Gender: |
Female |
Free Samples: |
Available |
LINK-PP P/N: |
LPJG0806FBNL |
Equivalent P/N: |
HR915330A |
Speed: |
10/100 Base-T |
PoE Function: |
Non-PoE |
Gender: |
Female |
Free Samples: |
Available |
| ELECTRICAL SPECFICATIONS @25℃ 1. Turn Ratio(±2%): 1CT:1CT 2. Inductance OCL: 350uH MIN 3. Insertion Loss: -1.0dB MAX @ 1.0-65MHz 4. Return Loss: -20dB MIN @ 1-10MHz -16dB MIN @ 10-30MHz -12dB MIN @ 30-60MHz -10dB MIN @ 60-100MHz 5. Cross talk: -40dB MIN @ 1-30MHz -35dB MIN @ 30-60MHz -30dB MIN @ 60-100MHz 6. Common Mode Rejection: -30dB MIN @ 1-50MHz -20dB MIN @ 50-150MHz 7. Hipot Test: 1500Vrms MIN 8. Operating Temperature Range: 0℃ TO 70℃ |
|
|
|
The LINK-PP Magjacck series supports various Ethernet speeds and built-in protection functions. Here’s a brief overview:
Supported Speeds:
Built-in Circuit Protection Functions:
PoE Support:
