JXD0-2015NL 1x2 Port Rj45 Connector With 1000Base-TX Magnetics LPJG26945AENL

China JXD0-2015NL 1x2 Port Rj45 Connector With 1000Base-TX Magnetics LPJG26945AENL supplier
JXD0-2015NL 1x2 Port Rj45 Connector With 1000Base-TX Magnetics LPJG26945AENL supplier JXD0-2015NL 1x2 Port Rj45 Connector With 1000Base-TX Magnetics LPJG26945AENL supplier JXD0-2015NL 1x2 Port Rj45 Connector With 1000Base-TX Magnetics LPJG26945AENL supplier

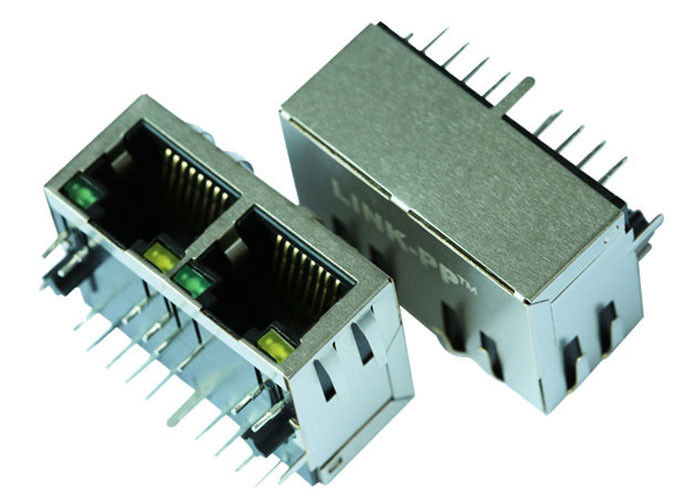

Large Image :  JXD0-2015NL 1x2 Port Rj45 Connector With 1000Base-TX Magnetics LPJG26945AENL

Product Details:

Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: ISO9001,SGS,UL,CE,REACH163
Model Number: JXD0-2015NL

Payment & Shipping Terms:

Minimum Order Quantity: 250 PCS
Price: Supportive & Competitive
Packaging Details: Tray & Carton&Reel
Delivery Time: Stock or 4 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 3000000/Month
Contact Now
Detailed Product Description
Midcom PN: JXD0-2015NL Made In China: LPJG26945AENL
Application: 1000Base-TX Applictation Mounting: Shielded W/LEDs
Port: Dual File: PDF/3D/ISG/Stp/Step/Datasheet

HY911205C 1x2 Port Rj45 Connector With 1000Base-TX Magnetics LPJ26204AENL

Shielded 1x2 Port RJ45 Magjack Connector with 1000 Base-T Integrated Magnetics,Green/Yellow LED,Tab Down,RoHS
LINK-PP Part Number LPJG26945AENL
Part Number JXD0-2015NL
Application-Lan ETHERNET(NoN PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port 8
Diodes NO DIODES
LED Option Green/Yellow LEDs
Latch TAB DOWN
Number of Ports 1X2
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (Inches) 0.526
Package Height (mm) 13.39
Package Length (Inches) 0.838
Package Length (mm) 21.30
Package Width (Inches) 1.212
Package Width (mm) 30.80
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITH
Speed 1000 Base-T
Temperature -40 TO + 85℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT
