Name: 2301996-8 Multi-port RJ45 Jack Double Port Gigabit FastJack LPJG26906A4NL
Brand: LINK-PP INT'L TECHNOLOGY CO., LIMITED
SKU: 2301996-8
Price: 6.10 USD
Availability: InStock

Product Details

Place of Origin: GuangDong, China

Brand Name: LINK-PP

Certification: ISO9001,SGS,UL,CE,REACH

Model Number: 2301996-8

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/25K

Price: $1.1-$12

Packaging Details: Tray

Delivery Time: 3-5 working days

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 208K/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                    2301996-8, 1x2 RJ45 FastJack, RJ45 Dual Connector


Part Number:	2301996-8	Status:	Active
Type:	Industrial RJ45 Mag Jack	Number Of Ports:	Multiple Ports, 1 X 2
Shielded:	YES	Performance Category:	Cat 5e
Latch Orientation:	Standard - Latch Down	Number Of Positions:	8 Position

Part Number:	2301996-8
Status:	Active
Type:	Industrial RJ45 Mag Jack
Number Of Ports:	Multiple Ports, 1 X 2
Shielded:	YES
Performance Category:	Cat 5e
Latch Orientation:	Standard - Latch Down
Number Of Positions:	8 Position

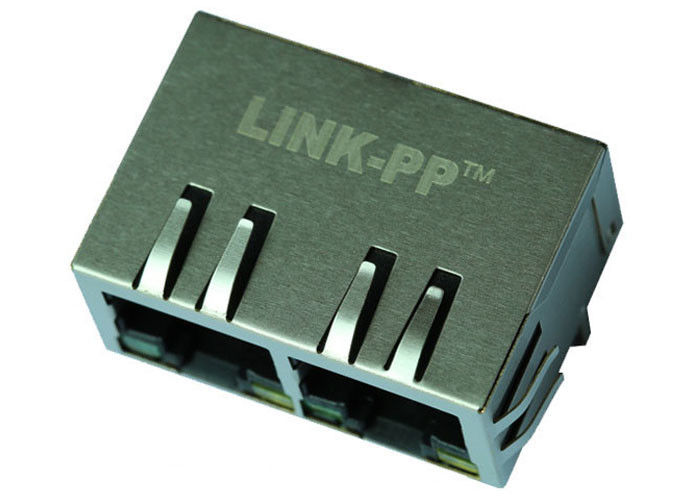

2301996-8 Multi-port RJ45 Jack Double Port Gigabit FastJack LPJG26906A4NL

2301996-8 Shielded 1X2 RJ45 Connector with Gigabit Integrated Magnetics

Physical Configuration

Parameter	Specification
Connector Type	RJ45 with Integrated Magnetics
Port Configuration	Multiple Ports
Port Matrix Configuration	1 x 2
Multiple Port Configuration	Ganged
Number of Positions	8
Number of Loaded Positions	8
Connector Contact Density	Standard
Connector Profile	Standard
Modular Jack & Plug Interface Type	RJ45 with Integrated Magnetics
Modular Jacks & Plugs Products	RJ Type Jacks & Plugs

Mechanical Specifications

Parameter	Specification
Connector Height	13.5 mm [.531 in]
PCB Mount Orientation	Right Angle
Modular Jack Latch Orientation	Standard - Latch Down
Mating Entry Location	Side
PCB Mount Retention Type	Boardlock
Termination Method	Through-Hole - Solder
PCB Ground Tab Location	3.05 mm [.12 in]
Number of PCB Ground Tabs	2
Number of Panel Ground Tabs	7
Panel Ground Location	Top and Side

Materials and Finish

Parameter	Specification
Housing Material	LCP (Liquid Crystal Polymer)
Housing Color	Black
Insulator Material	LCP
Shield Material	Brass
Shield Plating Material	Nickel
Shield Plating Finish	Matte
PCB Retention Feature Material	LCP
Contact Base Material	Copper Alloy
Contact Underplating Material	Nickel
Contact Mating Area Plating Material	Gold
Contact Mating Area Plating Thickness	.76 μm [30 μin]
PCB Contact Termination Area Plating Material	Tin
PCB Contact Termination Area Plating Material Finish	Matte

2301996-8 Datasheet
