MHJ5922ST 2x4 Rj45 Socket Female Jack R/A Shield W/LED LPJE47011ADNL

China MHJ5922ST 2x4 Rj45 Socket Female Jack R/A Shield W/LED LPJE47011ADNL supplier
MHJ5922ST 2x4 Rj45 Socket Female Jack R/A Shield W/LED LPJE47011ADNL supplier MHJ5922ST 2x4 Rj45 Socket Female Jack R/A Shield W/LED LPJE47011ADNL supplier

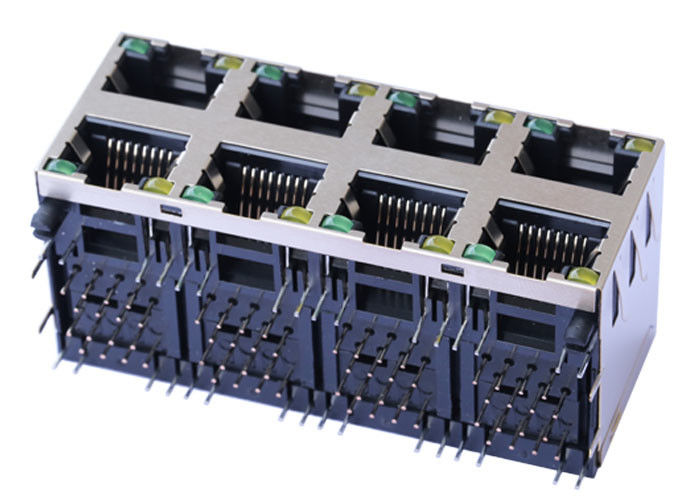

Large Image :  MHJ5922ST 2x4 Rj45 Socket Female Jack R/A Shield W/LED LPJE47011ADNL

Product Details:

Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: ISO9001,SGS,UL,CE,REACH,UL
Model Number: MHJ5922ST

Payment & Shipping Terms:

Minimum Order Quantity: 100
Price: Supportive
Packaging Details: Tray
Delivery Time: Stock or 4 Weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 3000000/Month
Contact Now
Detailed Product Description
Specifications: MHJ5922ST P.N: LPJE47011ADNL
Mechanical: 65.91x31.23x27.25mm Apllication: AutoMDIX 2x4
Mounting: THT,R/A Samples: Available

Coon 2x4 Rj45 Socket Female Jack R/A Shield W/LED LPJE47011ADNL



2x4 Port Female Connectivity to Ethernet, Cat5,5e

2x4 Port 8P8C RJ45 Female Connector without Integrated Magnetics,Green/Yellow LED,Tab Up/Tab Down,RoHS
LINK-PP Part Number LPJE47011ADNL
Other Part Number MHJ5922ST
Application-Lan ETHERNET(NoN PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"/50u"
Cores per Port NO
Diodes NO DIODES
LED Option Yellow/Green LEDS
Latch TAB UP/TAB DOWN
Number of Ports 2X4
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (Inches) 1.073
Package Height (mm) 27.25
Package Length (Inches) 1.230
Package Length (mm) 31.23
Package Width (Inches) 2.595
Package Width (mm) 65.91
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITH
Speed without Magnetics
Temperature - 40 TO + 85℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT



Electrical:
1.Voltage Rating : 125VAC RMS
2.Current Rating : 1.5AMP
3.Contact Resistance : 50 MΩ MAX
4.Insulation Resistance : 500 MΩMin @500V DC
5.Dielectric Strength : 1000VAC RMS 60HZ,1MIN

MHJ5922ST 2x4 Rj45 Socket Female Jack R/A Shield W/LED LPJE47011ADNL

Mechanical:
1.Housing&Insert Material : PBT UL94V-0
2.Contact Material : Diameter 0.46mm Phosphor Bronze
Gold Plating Over Nickel
3.Shield : 0.20-0.25mm Thickness Brass
With Tin Plated
4.Operation Life : 750 Cycless Min
Environmental
1.Storage : -40℃ to +85℃
2.Opertion : -40℃ to +85℃
3.Wave solder tip temperature: 265℃ Max, 5 Sec Max
UL Certification : File Number E484635





Do you also interested in External Magnetic Transformer ?



Single port ? Dual Ports ? Quad Ports ?

10/100Base-T ? 10/100/1000Base-T ?

With or Without POE POE+ ?
