Home > products > RJ45 Multi Port Jack > XMH-9769-A121122-426 Multi-port Rj45 2x1 Port Connector LPJ21004AGNL

XMH-9769-A121122-426 Multi-port Rj45 2x1 Port Connector LPJ21004AGNL

Product Details

Place of Origin: GuangDong, China

Brand Name: LINK-PP

Certification: ISO9001,SGS,UL,CE,REACH

Model Number: XMH-9769-A121122-426

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/25K

Price: $0.11-$12

Packaging Details: Tray

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 208K/Month

Get Best Price
Highlight:

multi port connector

,

dual rj45 jack

Spec:
XMH-9769-A121122-426
Category:
Rj45 1x2 Ethernet Connector
Manufacturer:
LINK-PP
Orientation:
90~ Angle (Right)
Shielding:
Shielded, No EMI Finger
File:
PDF/3D/ISG/Stp/Step/Datasheet
Spec:
XMH-9769-A121122-426
Category:
Rj45 1x2 Ethernet Connector
Manufacturer:
LINK-PP
Orientation:
90~ Angle (Right)
Shielding:
Shielded, No EMI Finger
File:
PDF/3D/ISG/Stp/Step/Datasheet

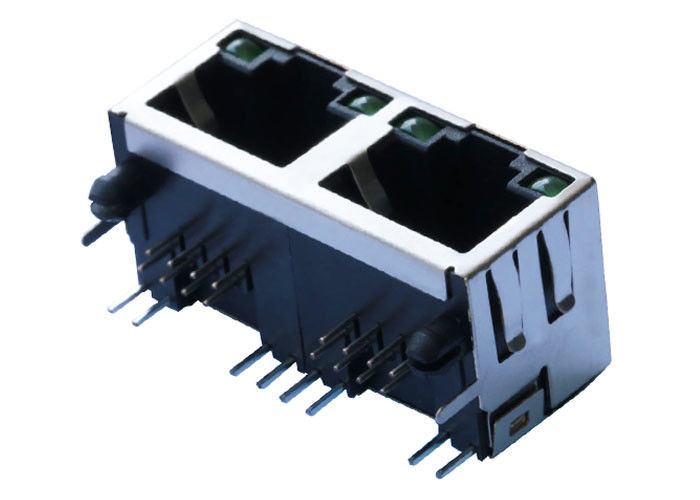

XMH-9769-A121122-426 Multi-port Rj45 2x1 Port Connector LPJ21004AGNL
XMH-9769-A121122-426 Multi-port Rj45 2x1 Port Connector LPJ21004AGNL

Description
Shielded 1x2 Port RJ45 Magjack Connector with 10/100 Base-T Integrated Magnetics,Yellow/Green LED,Tab UP,RoHS
LINK-PP Part Number LPJ21004AGNL
X Multiple Part Number XMH-9769-A121122-426
Application-Lan ETHERNET(NoN PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port 4
Diodes NO DIODES
LED Option Yellow/Green LEDs
Latch TAB UP
Number of Ports 1X2
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (Inches) 0.531
Package Height (mm) 13.50
Package Length (Inches) 1.00
Package Length (mm) 25.4
Package Width (Inches) 1.197
Package Width (mm) 30.40
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITH
Speed 10/100 Base-T
Temperature 0 TO + 70℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT

Why Choose Us

World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers



100% Guarantee Qualtiy

•Manufactured Under Strict Controls.

•100% Tested (Not Just Batch Tested)

•LINK-PP Is OEM Of TE (Tyco) For 9 Years

•Successful Customer: Texas Instruments Samsung Cisco Siemens And Intel…

•LINK-PP Is The Preferred Supplier Of TI (Texas Instruments)

•Quality Guarantee:6 Years



XMH-9769-A121122-426 Multi-port Rj45 2x1 Port Connector LPJ21004AGNL 0



Competitive Price And Service

•More Competitive Price Than Pulse Tyco Halo And Amphenol

•Delivery Time:2-3 Weeks After Orders

•Free Samples Are Available

•Provide New Design For Customer Requirements

•90% Off Shipping Cost By DHL UPS DEDEX Or TNT



LINK-PP Corporate Policy

•The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction

Through Continuous Improvements In Quality, Delivery And Service

• LINK-PP Is Committed To And Expects Quality Performance From Every Employee

• The Company Standard Is Defect-Free Products And Services



Professional Certification

•ISO 9001:2008

•UL Certification

•Reach Cetitifaction

•RoHS Compliance

•Active Environmental Policy
