Product Details
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: YL59A-S2488L1-E2
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/60K
Price: $0.11-$24
Packaging Details: Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 180K/Month
Part No: |
YL59A-S2488L1-E2 |
Specification: |
LPJE108XAGNL |
Ethernet: |
Cat5/5e |
Mounting: |
Thru-hole |
Termination: |
Solder |
Samples: |
Available |
Part No: |
YL59A-S2488L1-E2 |
Specification: |
LPJE108XAGNL |
Ethernet: |
Cat5/5e |
Mounting: |
Thru-hole |
Termination: |
Solder |
Samples: |
Available |

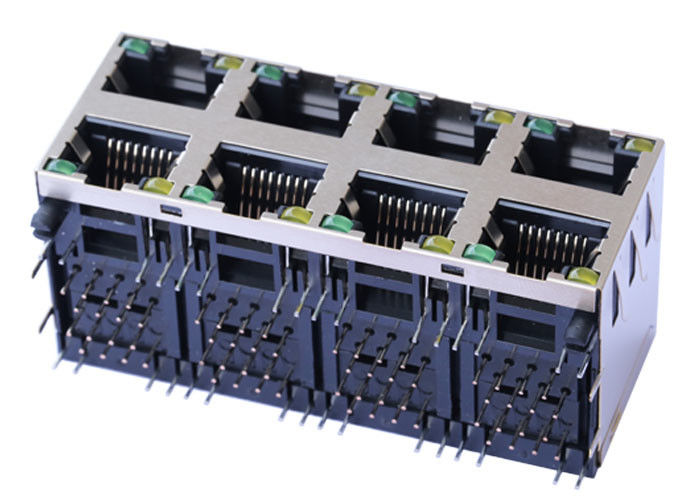

| 2X4 Port 8P8C RJ45 Female Connector without Transformer,Yellow/Green LED,Tab Up/Down,RoHS | |
| LINK-PP Part Number | LPJE108XAGNL |
| Other Part Number |
YL59A-S2488L1-E2
|
| Application-Lan | ETHERNET(NoN PoE) |
| AutomDX | YES |
| Bst Circuit | YES |
| Configuration RX | T,C |
| Configuration TX | T,C |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Cores per Port | Without Magnetics |
| Diodes | NO DIODES |
| LED Option | Yellow / Green LEDS |
| Latch | TAB UP/TAB DOWN |
| Number of Ports | 2X4 |
| PCB | FR4 |
| PCB Mount Angle | SIDE ENTRY |
| PCB Retaining Post | T POST |
| Package Height (Inches) | 1.000 |
| Package Height (mm) | 25.40 |
| Package Length (Inches) | 1.108 |
| Package Length (mm) | 28.15 |
| Package Width (Inches) | 2.514 |
| Package Width (mm) | 63.86 |
| Pin Type | THT SOLDER |
| RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search | YES |
| Shield EMI Tabs | WITH |
| Speed | Without |
| Temperature | -40 TO + 85℃ |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
