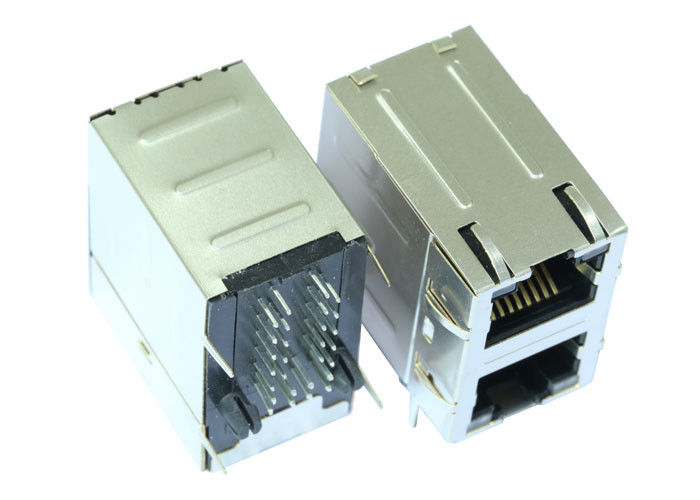

RM3-ZZ-0020 2x1 Port Stacked Rj45 Right Angle Without Magnetic LPJ17405AHNL

China RM3-ZZ-0020 2x1 Port Stacked Rj45 Right Angle Without Magnetic LPJ17405AHNL supplier
RM3-ZZ-0020 2x1 Port Stacked Rj45 Right Angle Without Magnetic LPJ17405AHNL supplier RM3-ZZ-0020 2x1 Port Stacked Rj45 Right Angle Without Magnetic LPJ17405AHNL supplier

Large Image :  RM3-ZZ-0020 2x1 Port Stacked Rj45 Right Angle Without Magnetic LPJ17405AHNL

Product Details:

Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: ISO9001,SGS,UL,CE,REACH
Model Number: RM3-ZZ-0020

Payment & Shipping Terms:

Minimum Order Quantity: 1000 / 5000
Price: Supportive
Packaging Details: package:60 pcs in 1 tray,22 tray in 1 carton, which is 37*30*30 cm, 10 KGS (1320 pcs) of each carton
Delivery Time: 20-30 work days
Payment Terms: TT,Paypal,West Union
Supply Ability: 3000000/Month
Contact Now
Detailed Product Description
Spec: RM3-ZZ-0020 Analogue PN: LPJ17405AHNL
Family: Rj45 With Transformer Inside I/O: 2x1 10/100Base-T
Files: 3D STEP IGS PDF Datasheet Termination: Solder

C12-2000000A 2x1 Port Stacked Rj45 Right Angle Without Magnetic LPJE17200CNL



2X1 Port 8P8C Cat5 RJ45 Double Deck PCB Jack, Green/Yellow LED,Tab Up/Down,RoHS
LINK-PP Part Number LPJ17405AHNL
UDE Part Number
RM3-ZZ-0020
Application-Lan ETHERNET(NoN PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port 4
Diodes NO DIODES
LED Option Green/Yellow LEDS
Latch TAB UP/TAB DOWN
Number of Ports 2X1
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (Inches) 0.996
Package Height (mm) 25.29
Package Length (Inches) 1.122
Package Length (mm) 28.50
Package Width (Inches) 0.678
Package Width (mm) 17.21
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITH
Speed 10/100 Base-T
Temperature 0 TO + 70℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT

application:

PCMCIA Networking Cards

Vacuum Fluorescent Displays

Computer Printers and Plotters

CompactPCI and PXI Products
