Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: HR911001C
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.08-$1.79
Packaging Details: 20pcs/Tray or Reel
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 100K-PCS/Month
Specifications: |
HR911001C |
Part No: |
LPJK7008ALNL |
Mounting: |
THT |
Family: |
Low Profile 1GE Connector |
Files: |
PDF/3D/ISG/Stp/Step/Datasheet |
Alternate: |
HR911001C=LPJK7008ALNL |
Specifications: |
HR911001C |
Part No: |
LPJK7008ALNL |
Mounting: |
THT |
Family: |
Low Profile 1GE Connector |
Files: |
PDF/3D/ISG/Stp/Step/Datasheet |
Alternate: |
HR911001C=LPJK7008ALNL |

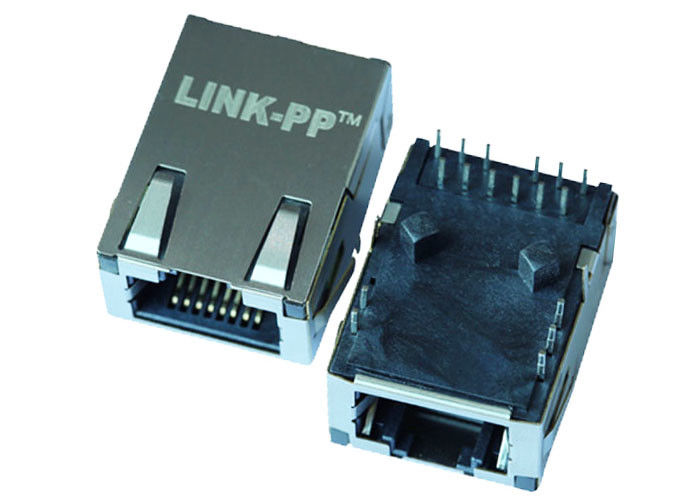

| Single Port Low Profile RJ45 Connector with 10/100 Base-T Integrated Magnetics,Green&Orange/Yellow LED,Tab Up,RoHS | |
| LINK-PP Part Number | LPJK7008ALNL |
| HanRun Part Number | HR911001C |
| Application-Lan | ETHERNET(NoN PoE) |
| AutomDX | YES |
| Bst Circuit | YES |
| Configuration RX | T,C |
| Configuration TX | T,C |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Cores per Port | 4 |
| Diodes | NO DIODES |
| LED Option | Green&Orange/Yellow |
| Latch | TAB UP |
| Number of Ports | 1X1 |
| PCB | FR4 |
| PCB Mount Angle | SIDE ENTRY |
| PCB Retaining Post | T POST |
| Package Height (Inches) | 0.445 |
| Package Height (mm) | 11.30 |
| Package Length (Inches) | 0.950 |
| Package Length (mm) | 24.14 |
| Package Width (Inches) | 0.700 |
| Package Width (mm) | 17.78 |
| Pin Type | THT SOLDER |
| RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search | YES |
| Shield EMI Tabs | WITH |
| Speed | 10/100 BASE-T |
| Temperature | 0 TO 70℃ |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
