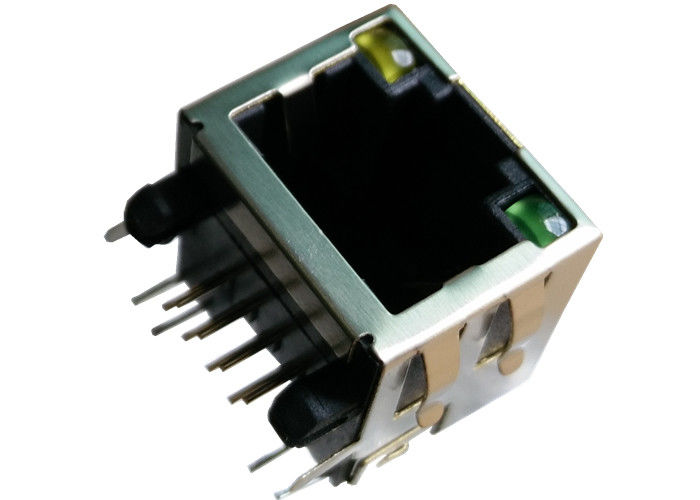

42017-00XXX1 Tab Up RJ45 Modular Jack 8P8C Shielded R/A With LED LPJE101AHNL

China LINK-PP INT'L TECHNOLOGY CO., LIMITED certification
China LINK-PP INT'L TECHNOLOGY CO., LIMITED certification
WOW , 100% Tested ,Zero Defective

—— TI

LINK-PP is Our Best Supplier in China

—— Intel

Thanks a Lot For Supplying Excellent RJ45 And Transformer ,LINK-PP Deserve the Consideration Worldwidely

—— Cisco

LINK-PP is Flex type A Vendor For All RJ45 Connector and Transformer

—— Flextronics

I'm Online Chat Now

42017-00XXX1 Tab Up RJ45 Modular Jack 8P8C Shielded R/A With LED LPJE101AHNL

42017-00XXX1 Tab Up RJ45 Modular Jack 8P8C Shielded R/A With LED LPJE101AHNL
42017-00XXX1 Tab Up RJ45 Modular Jack 8P8C Shielded R/A With LED LPJE101AHNL 42017-00XXX1 Tab Up RJ45 Modular Jack 8P8C Shielded R/A With LED LPJE101AHNL

Large Image :  42017-00XXX1 Tab Up RJ45 Modular Jack 8P8C Shielded R/A With LED LPJE101AHNL

Product Details:
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: 42017-00XXX1
Payment & Shipping Terms:
Minimum Order Quantity: 50/500/1000/25K
Price: $0.05-$1.28
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 4200K-PCS/Month
Detailed Product Description
Specifications: 42017-00XXX1 Equivalent PN: LPJE101AHNL
Mechanical: 15.75x16.25x13.10mm Samples: Free 3 Pcs
LED Color: Green / Yellow Port: 1x1 Single
High Light:

modular jacks rj45

,

industrial rj45 connector

6116173-4 Tab Up RJ45 Modular Jack 8P8C Shielded R/A With LED LPJE101AHNL
  1. RJ45 with leds LPJE101AHNL
  2. 1X1 Tab-up 8P8C Connectors-rj45
  3. Through hole RJ45 modular jack
  4. Designed to meet IEEE802.3u requirement
  5. Available in all turn ratios used by LAN ICmanufactures
  6. Conserves minimizing PCB space
Shielded 1x1 Port 8P8C RJ45 Female Connector without Integrated Magnetics ,Green/Yellow LED,Tab UP,RoHS
LINK-PP Part Number LPJE101AHNL
Other Part Number 42017-00XXX1
Application-Lan ETHERNET(NoN PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port Without Magnetics
Diodes With DIODES
LED Option Green/Yellow LEDs
Latch TAB UP
Number of Ports 1X1
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (Inches) 0.516
Package Height (mm) 13.10
Package Length (Inches) 0.620
Package Length (mm) 15.75
Package Width (Inches) 0.640
Package Width (mm) 16.26
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs With
Speed Without Magnetics
Temperature -40 TO + 85℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT



1. Product Type Features:

  1) Product Type = Connector
  2) Jack Type = RJ45
  3) Profile = Standard
  4) PCB Mounting Orientation = Side Entry (Right Angle)
2. Mechanical Attachment:
  1) Jack Configuration = 1 x 1
3. Electrical Characteristics:
  1) Shielded = Yes
4. Termination Related Features:
  1) EMI Finger - Bottom = Without
  2) Termination Method = Solder
5. Body Related Features:
  1) Port Configuration = Single/Multi
  2) EMI Fingers -Top and Sides = With/ Without
  3) Latch Orientation = Standard - Latch Down
  4) PCB Tail Length
6. Contact Related Features:
  1) Preloaded = Yes
  2) Contact Termination Type = Through Hole/Surface Mount
7. Housing Related Features:
  1) Connector Style = Jack
8. Industry Standards:
  1) RoHS/ELV Compliance = RoHS compliant, ELV compliant
  2) Lead Free Solder Processes = Wave solder capable to 240°C,
      Wave solder capable to 260°C, Wave solder capable to 265°C
  3) RoHS/ELV Compliance History = Always was RoHS compliant
9. Identification Marking:
  1) Left LED Color (Position #1) = Green - 250 ohm resistor
  2) Right LED Color (Position #2) = Yellow - 250 ohm resistor
10. Conditions for Usage:
  1) Applies To = Printed Circuit Board
  2) Environmental Conditions = Office / Premises
  3) Operating Temperature (°C ) = 0 - 70/-40 - +85

Applications:
Workbenches and Workstations (Industrial)
Computer-on-Module (COM)
Relay Test Equipment
Through Hole Assembly

Competitive Advantage:
2600 staff,
100% test
Flexible delivery time
