Home > products > SMT RJ45 Connector > RJCSE538001 SMT 1x1 Port RJ45 Magjack Connector Without Magnetics LPJES101CNL

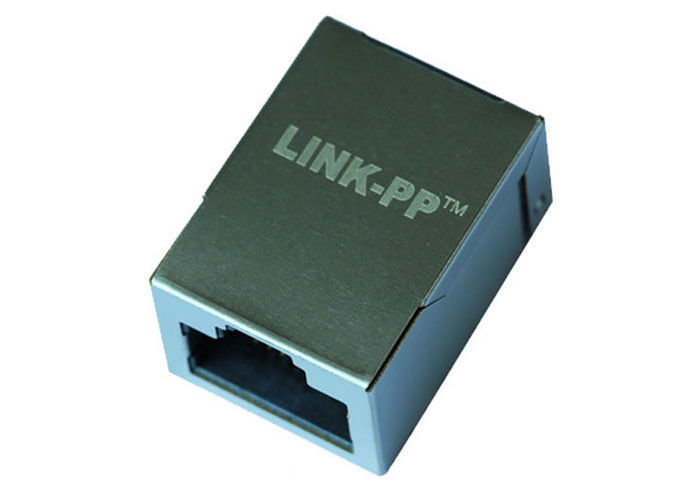

RJCSE538001 SMT 1x1 Port RJ45 Magjack Connector Without Magnetics LPJES101CNL

Product Details

Place of Origin: GuangDong, China

Brand Name: LINK-PP

Certification: ISO9001,SGS,UL,CE,REACH

Model Number: RJCSE538001

Payment & Shipping Terms

Minimum Order Quantity: 200/500 PCS

Price: Supportive

Packaging Details: Reel/Carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 3000000/Month

Get Best Price
Highlight:

surface mount rj45 connector

,

ultra low profile jack

Part Number:
RJCSE538001
Made In China:
LPJES101CNL
Original Munafactuer:
LINK-PP
Termination:
Solder
Samples:
Available 2 Pcs
File:
PDF/3D/ISG/Stp/Step/Datasheet
Part Number:
RJCSE538001
Made In China:
LPJES101CNL
Original Munafactuer:
LINK-PP
Termination:
Solder
Samples:
Available 2 Pcs
File:
PDF/3D/ISG/Stp/Step/Datasheet
RJCSE538001 SMT 1x1 Port RJ45 Magjack Connector Without Magnetics LPJES101CNL
RJCSE538001 SMT 1x1 Port RJ45 Magjack Connector Without Magnetics LPJES101CNL



SMT 1x1 Port RJ45 Magjack Connector without Integrated Magnetics,Without LED,Tab UP,RoHS
LINK-PP Part Number LPJES101CNL
Amphenol Part Number RJCSE538001
Application-Lan ETHERNET(NoN PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port -
Diodes NO DIODES
LED Option Without LEDs
Latch TAB UP
Number of Ports 1X1
PCB FR4
PCB Mount Angle Surface Mount
PCB Retaining Post T POST
Package Height (Inches) 0.533
Package Height (mm) 13.55
Package Length (Inches) 0.620
Package Length (mm) 15.75
Package Width (Inches) 0.652
Package Width (mm) 16.55
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs Shielded
Speed -
Temperature -40 TO + 85
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT



Applications For Terminal User
Designed to support applications, such as ADSL modems, LAN-on-Motherboard. Networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem,Call Center solutions , Complex set top boxes , VOIP gateways setup,Border Gateway Protocol,fast ethernet switch ...



Competitive Advantage
18 years production experience,
2600 staff,
100% test
Flexible delivery time



Main Customer
Design for Ti , Intel , Samsung ,  Fluke , Jabil  , Flextronics ,Cypress, Freescale,EKF.......
