SI-61024-F RJ45 Modular Jack Integrated 10/100/1000 Base-T LPJG0897CNL

China SI-61024-F RJ45 Modular Jack Integrated 10/100/1000 Base-T LPJG0897CNL supplier
SI-61024-F RJ45 Modular Jack Integrated 10/100/1000 Base-T LPJG0897CNL supplier SI-61024-F RJ45 Modular Jack Integrated 10/100/1000 Base-T LPJG0897CNL supplier

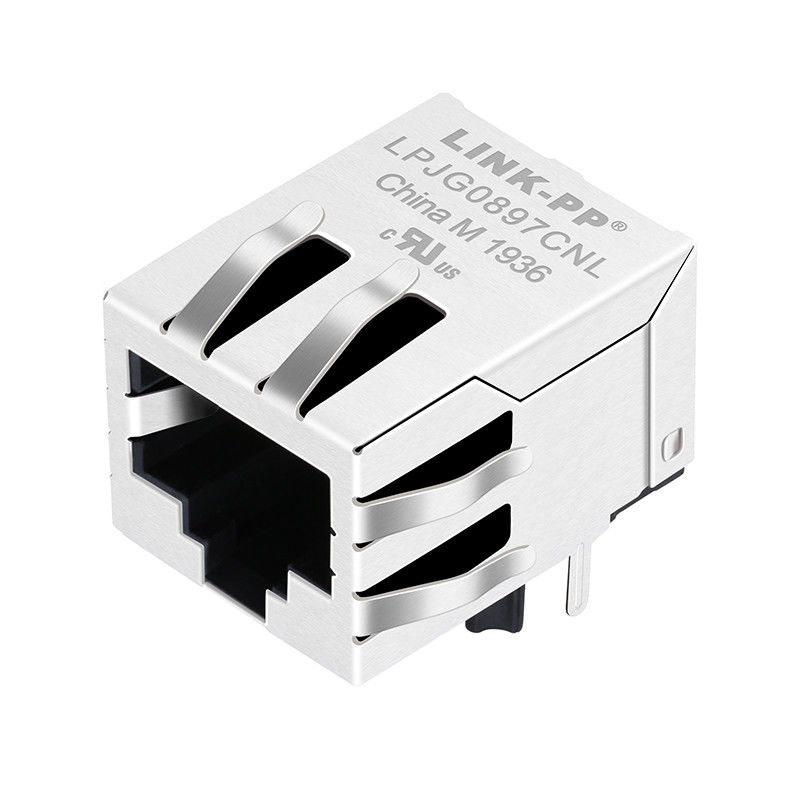

Large Image :  SI-61024-F RJ45 Modular Jack Integrated 10/100/1000 Base-T LPJG0897CNL

Product Details:

Place of Origin: China
Brand Name: LINK-PP
Certification: ISO 9001,ISO 14001,UL,SGS,REACH168
Model Number: SI-61024-F

Payment & Shipping Terms:

Minimum Order Quantity: 200/500//1200
Price: Supportive
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock
Payment Terms: TT,Paypal,West Union
Supply Ability: 4200K-PCS/Month
Contact Now
Detailed Product Description
Part Number: SI-61024-F Mass Production: LPJG0897CNL
Original Munafactuer: LINK-PP Application: 10/100/1000Base-T
Termination: Solder LEDs: Without

HR941105CE RJ45 Modular Jack Integrated 10 /100Base-T LPJ4011GENL



Shielded 1x1 Port RJ45 Female Connector with 10/100/1000 Base-T Integrated Magnetics ,Without LED,Tab Down,RoHS
LINK-PP Part Number LPJG0897CNL
Belfuse Part Number SI-61024-F
Application-Lan ETHERNET(NoN PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port 8
Diodes Yes
LED Option without LEDs
Latch TAB Down
Number of Ports 1X1
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (Inches) 0.524
Package Height (mm) 13.30
Package Length (Inches) 0.837
Package Length (mm) 21.25
Package Width (Inches) 0.627
Package Width (mm) 15.93
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs With
Speed 10/100/1000 BASE-T
Temperature 0 TO +70℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT



SI-61024-F RJ45 Modular Jack Integrated 10/100/1000 Base-T LPJG0897CNL

Applications For Terminal User

Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem,Call Center solutions , Complex set top boxes , VOIP gateways setup,Border Gateway Protocol,fast ethernet switch ...



Competitive Advantage

18 years production experience,

2600 staff,

100% test

Flexible delivery time



Main Customer

Design for Ti , Intel , Samsung ,  Fluke , Jabil  , Flextronics ,Cypress, Freescale,EKF.......



EMS Application

Flexible PCB Assembly; Rigid-Flexible PCB Assembly; Microelectronic, Flip Chip; Microelectronic, Chip On Board; Optoelectronic Assembly; RF / Wireless Assembly; Through Hole Assembly; Surface Mount Assembly; System Assembly; Printed Circuit Board Assembly
