90511-001LF Unshielded THT 4P4C Telephone Headset with RJ11 Connector LPJE614NNL

Product Details

Place of Origin: Guangdong,China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: 90511-001LF

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/25K

Price: $0.09-$1.85

Packaging Details: 50pcs/tray,1200pcs/carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 250000-320000/Month

Get Best Price
Highlight:

rj45 smd connector

,

shielded rj45 plugs

Part Number:
90511-001LF
Connector Type:
RJ11
PIN Type:
THT Solder
Orientation:
90~ Angle (Right)
Temperature:
-40 TO +85
File:
PDF/3D/ISG/Stp/Step/Datasheet
Part Number:
90511-001LF
Connector Type:
RJ11
PIN Type:
THT Solder
Orientation:
90~ Angle (Right)
Temperature:
-40 TO +85
File:
PDF/3D/ISG/Stp/Step/Datasheet

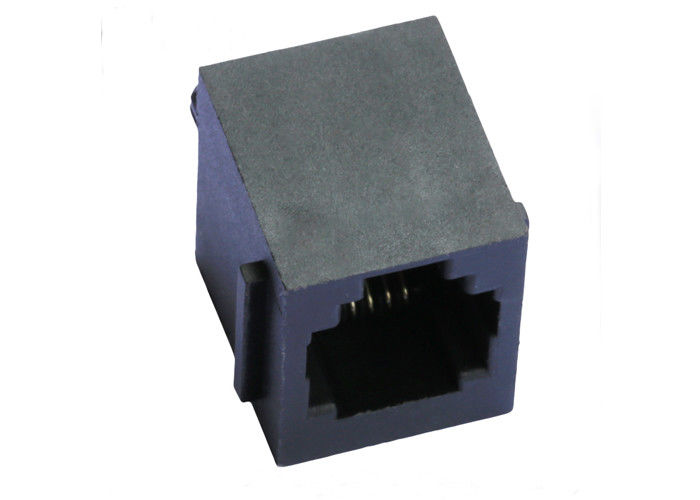

90511-001LF Unshielded THT 4P4C Telephone Headset with RJ11 Connector LPJE614NNL
90511-001LF Unshielded THT 4P4C Telephone Headset with RJ11 Connector LPJE614NNL



Unshielded THT 4P4C Telephone Headset with RJ11 Connector ,wihtout LED,Tab Up,RoHS
LINK-PP Part Number LPJE614NNL
Amphenol Part Number 90511-001LF
Application-Lan ETHERNET
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port NON
Diodes NO DIODES
LED Option Without
Latch TAB UP
Number of Ports 1X1
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (Inches) 0.645
Package Height (mm) 16.38
Package Length (Inches) 0.625
Package Length (mm) 15.88
Package Width (Inches) 0.450
Package Width (mm) 11.43
Pin Type THT
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITHOUT
Speed -
Temperature -40 TO +85℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT
