Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: ISO 9001,ISO 14001,UL,SGS,REACH168
Model Number: JGCA1T1004PPW-GY
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.09-$1.85
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 4200K-PCS/Month
Part Number: |
JGCA1T1004PPW-GY |
Mass Production: |
LPJK6079AHNL |
Original Munafactuer: |
LINK-PP |
Application: |
10/100/1000Base-T |
Termination: |
Solder |
LEDs: |
GREEN/YELLOW |
Part Number: |
JGCA1T1004PPW-GY |
Mass Production: |
LPJK6079AHNL |
Original Munafactuer: |
LINK-PP |
Application: |
10/100/1000Base-T |
Termination: |
Solder |
LEDs: |
GREEN/YELLOW |

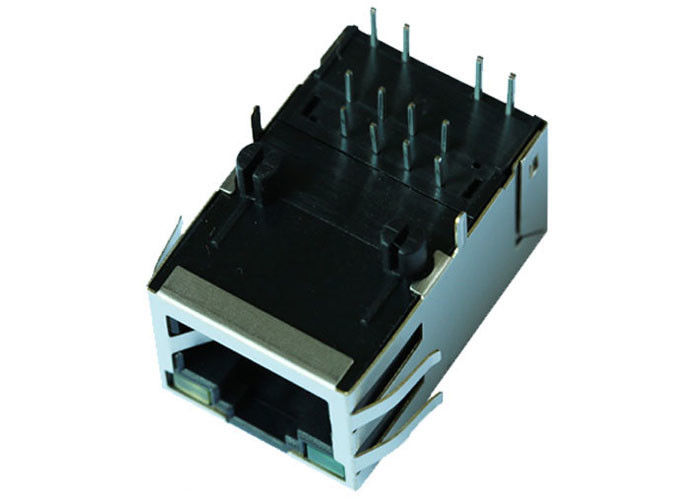

| Shielded 1x1 Port 8P8C RJ45 Female Connector with 10/100/1000 Base-T Integrated Magnetics & PoE++, 150W , Green/Yellow LED,Tab UP,RoHS | |
| LINK-PP Part Number | LPJK6079AHNL |
| Other Part Number | JGCA1T1004PPW-GY |
| Application-Lan | ETHERNET(PoE++) |
| AutomDX | YES |
| Bst Circuit | YES |
| Configuration RX | T,C |
| Configuration TX | T,C |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Cores per Port | 8 |
| Diodes | Without DIODES |
| LED Option | Green/Yellow LEDs |
| Latch | TAB UP |
| Number of Ports | 1X1 |
| PCB | FR4 |
| PCB Mount Angle | SIDE ENTRY |
| PCB Retaining Post | T POST |
| Package Height (Inches) | 0.531 |
| Package Height (mm) | 13.50 |
| Package Length (Inches) | 1.280 |
| Package Length (mm) | 32.50 |
| Package Width (Inches) | 0.654 |
| Package Width (mm) | 16.60 |
| Pin Type | THT SOLDER |
| RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search | YES |
| Shield EMI Tabs | With |
| Speed | 10/100/1000 Base-T |
| Temperature | -40 TO + 85 |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
Applications For Terminal User
Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem,Call Center solutions , Complex set top boxes , VOIP gateways setup,Border Gateway Protocol,fast ethernet switch ...
Competitive Advantage
18 years production experience,
2600 staff,
100% test
Flexible delivery time
Main Customer
Design for Ti , Intel , Samsung , Fluke , Jabil , Flextronics ,Cypress, Freescale,EKF.......
EMS Application
Flexible PCB Assembly; Rigid-Flexible PCB Assembly; Microelectronic, Flip Chip; Microelectronic, Chip On Board; Optoelectronic Assembly; RF / Wireless Assembly; Through Hole Assembly; Surface Mount Assembly; System Assembly; Printed Circuit Board Assembly
