JGKA4T878 1x4 Port Magjack RJ45 Connector Without Magnetics LPJK40036CNL

China JGKA4T878 1x4 Port Magjack RJ45 Connector Without Magnetics LPJK40036CNL supplier
JGKA4T878 1x4 Port Magjack RJ45 Connector Without Magnetics LPJK40036CNL supplier JGKA4T878 1x4 Port Magjack RJ45 Connector Without Magnetics LPJK40036CNL supplier

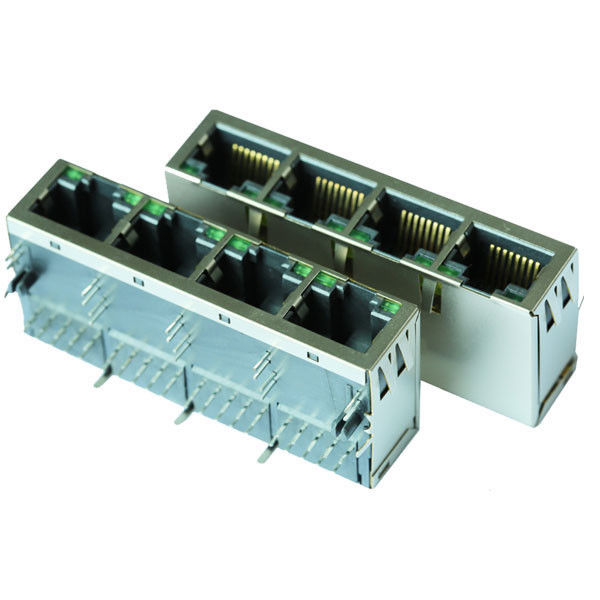

Large Image :  JGKA4T878 1x4 Port Magjack RJ45 Connector Without Magnetics LPJK40036CNL

Product Details:

Place of Origin: China
Brand Name: LINK-PP
Certification: SGS, UL,CE,ISO9001:2008,Reach
Model Number: JGKA4T878

Payment & Shipping Terms:

Minimum Order Quantity: 500pcs
Price: Negotiable
Packaging Details: Tray, Tape & Reel
Delivery Time: 2-3 weeks
Payment Terms: T/T, Western Union
Supply Ability: 3000K/month
Contact Now
Detailed Product Description
Part Number: JGKA4T878 Application-Lan: Ethernet(NoN PoE)
Gender: Female,Receptacle Plating: Gold Or Tin Plate,OEM
RJ45 Connector: 1 X 4 Port Muti-port,Custom File: PDF/3D/ISG/Stp/Step/Datasheet

JGKA4T878 1x4 Port Magjack RJ45 Connector Without Magnetics LPJK40036CNL



Shielded 1x4 Port RJ45 Magjack Connector with 10/100/1000 Base-T Integrated Magnetics,without LED,Tab UP,RoHS
LINK-PP Part Number LPJK40036CNL
Other Part Number JGKA4T878
Application-Lan ETHERNET(NoN PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port 8
Diodes NO DIODES
LED Option without LEDs
Latch TAB UP
Number of Ports 1X4
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (Inches) 0.482
Package Height (mm) 12.25
Package Length (Inches) 1.30
Package Length (mm) 33.02
Package Width (Inches) 2.292
Package Width (mm) 58.22
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITH
Speed 10/100/1000 Base-T
Temperature 0 TO + 70℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT



Why Choose Us

World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers



100% Guarantee Qualtiy

•Manufactured Under Strict Controls.

•100% Tested (Not Just Batch Tested)

•Quality Guarantee:6 Years

•Successful Customer: Texas Instruments Samsung Cisco Siemens And Intel…

•LINK-PP Is The Preferred Supplier Of TI (Texas Instruments)

•LINK-PP Is OEM Of TE (Tyco) For 9 Years



546-844-19 Magnetic RJ45 1000 Base - T Jack Female Connector LPJK0071CNL



Competitive Price And Service

•More Competitive Price Than Pulse Tyco Halo And Amphenol

•Delivery Time:2-3 Weeks After Orders

•Free Samples Are Available

•Provide New Design For Customer Requirements

•90% Off Shipping Cost By DHL UPS DEDEX Or TNT



LINK-PP Corporate Policy

•The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction

Through Continuous Improvements In Quality, Delivery And Service

• LINK-PP Is Committed To And Expects Quality Performance From Every Employee

• The Company Standard Is Defect-Free Products And Services



Professional Certification

•ISO 9001:2008

•UL Certification

•Reach Cetitifaction

•RoHS Compliance

•Active Environmental Policy
