JDKA4T854-D1/Y 2x4 Port Stacked Modular Jacks RJ45 Without Magnetic LPJG47580A35NL

JDKA4T854-D1/Y 2x4 Port Stacked Modular Jacks RJ45 Without Magnetic LPJG47580A35NL
JDKA4T854-D1/Y 2x4 Port Stacked Modular Jacks RJ45 Without Magnetic LPJG47580A35NL JDKA4T854-D1/Y 2x4 Port Stacked Modular Jacks RJ45 Without Magnetic LPJG47580A35NL

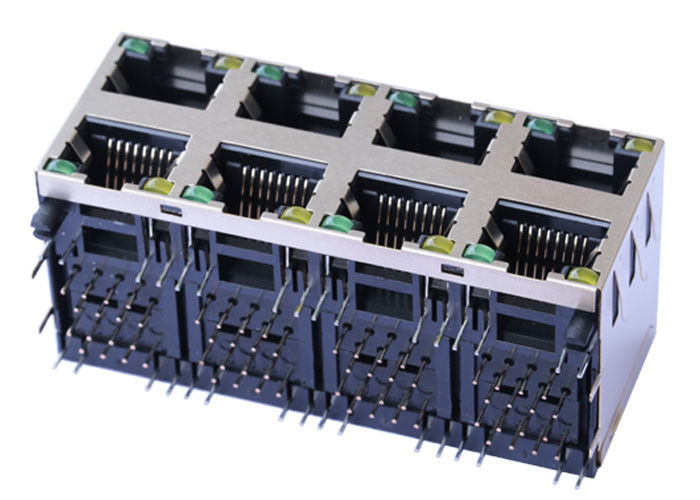

Large Image :  JDKA4T854-D1/Y 2x4 Port Stacked Modular Jacks RJ45 Without Magnetic LPJG47580A35NL

Product Details:
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: JDKA4T854-D1/Y
Payment & Shipping Terms:
Minimum Order Quantity: 50/500/1000/60K
Price: $0.11-$24
Packaging Details: Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 180K/Month
Detailed Product Description
Part No: JDKA4T854-D1/Y Specification: LPJG47580A35NL
Ethernet: Cat5/5e Mounting: Thru-hole
Termination: Solder Samples: Available
Highlight:

stacked rj45 connectors

,

rj45 usb connector combo

JDKA4T854-D1/Y 2x4 Port Stacked Modular Jacks RJ45 Without Magnetic LPJG47580A35NL



2X4 Port 8P8C RJ45 Female Connector 10/100/1000 Base-T Transformer,Yellow&Green/Yellow LED,Tab Up/Down,RoHS
LINK-PP Part Number LPJG47580A35NL
Other Part Number
JDKA4T854-D1/Y
Application-Lan ETHERNET(NoN PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"/50u"
Cores per Port 8
Diodes NO DIODES
LED Option Yellow&Green/Yellow LEDS
Latch TAB UP/TAB DOWN
Number of Ports 2X4
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (Inches) 1.015
Package Height (mm) 25.79
Package Length (Inches) 1.112
Package Length (mm) 28.35
Package Width (Inches) 2.330
Package Width (mm) 59.18
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITH
Speed 10/100/1000 Base-T
Temperature 0 TO + 70℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT
