Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: HR861153C
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.05-$1.28
Packaging Details: Tray Package:50 pcs in 1 tray, 24 tray in 1 carton, which is 32*30*31cm, 8.5KGS (1200pcs) of each carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 4200K-PCS/Month
Part Number: |
HR861153C |
Mass Production: |
LPJ0284GDNL |
Original Munafactuer: |
LINK-PP |
Application: |
10/100Base-TX |
PoE: |
IEEE 802.3af PoE |
Operating Life: |
≥ 750 Mating Cycles |
Operating Temperature: |
0°C To +70°C |
Storage Temperature: |
-40°C To +85°C |
Part Number: |
HR861153C |
Mass Production: |
LPJ0284GDNL |
Original Munafactuer: |
LINK-PP |
Application: |
10/100Base-TX |
PoE: |
IEEE 802.3af PoE |
Operating Life: |
≥ 750 Mating Cycles |
Operating Temperature: |
0°C To +70°C |
Storage Temperature: |
-40°C To +85°C |

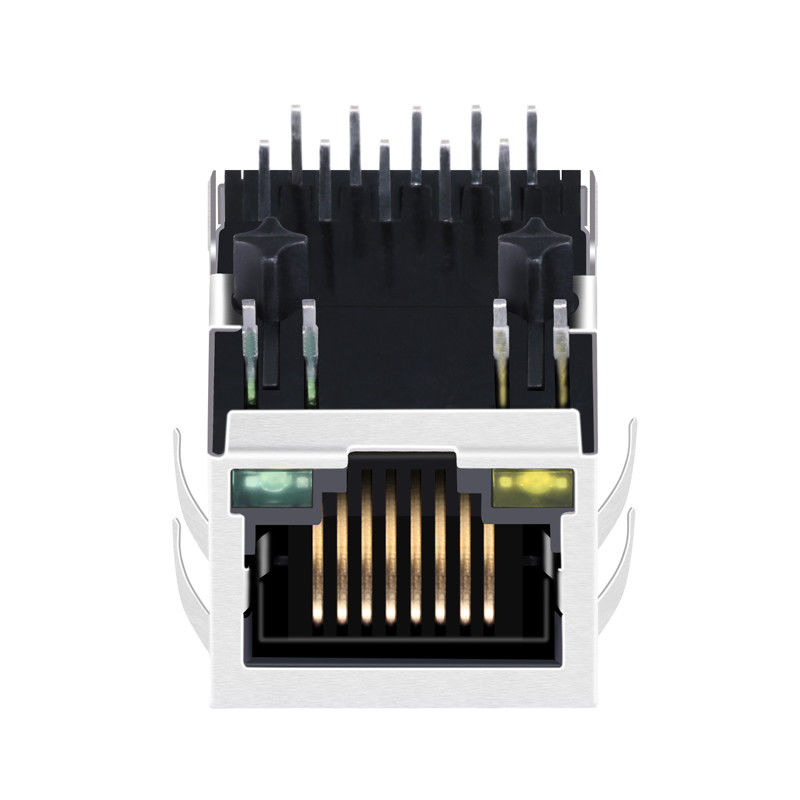

The HR861153C is a single-port RJ45 connector with integrated magnetics and dual LEDs, designed for 10/100Base-TX Ethernet and PoE applications.
With a through-hole (THT) vertical design, downward latch orientation, and EMI spring shielding, HR861153C helps engineers reduce PCB space, simplify layout, and improve overall signal integrity.
Fully compliant with IEEE 802.3af PoE standards, this connector integrates LAN magnetics directly into the RJ45 jack, reducing the number of external components while delivering stable electrical performance and high manufacturing reliability.
Designed to meet demanding Ethernet and PoE requirements, the HR861153C delivers consistent electrical performance:
| LED Color | Wavelength | Forward Voltage (Min / Max) | Forward Current | Type |
|---|---|---|---|---|
| Green | 568 nm | 1.8 V / 2.8 V | 20 mA | Squareness |
| Yellow | 585 nm | 1.8 V / 2.8 V | 20 mA |
Squareness |
The dual LEDs provide clear visual indication of link, activity, and status, improving diagnostics during installation and maintenance.
1. Housing: PA66 GF, Black, UL94 V-0
2. Insert: PA66 GF, Black, UL94 V-0
3. Contact Material: Phosphor Bronze, 0.35 mm thickness
4. Contact Plating:
5. Shield: Brass, 0.20 mm thickness
6. Shield Plating: 30 µin Nickel
These materials ensure excellent corrosion resistance, solderability, mechanical strength, and EMI suppression.
| Parameter | Specification |
|---|---|
| Part Number | HR861153C |
| Port Configuration | 1×1 RJ45 |
| Speed | 10/100Base-TX |
| PoE | IEEE 802.3af |
| Mounting | Through-Hole |
| LED | Green & Yellow |
| EMI Shield | With spring fingers |
| Isolation | 2250 VDC |
| Operating Temp | 0°C to +70°C |
RJ45 connectors are packed in ESD-safe trays or tubes to protect contacts, shielding, and LEDs during handling and transport. Each package is clearly labeled with part number, quantity, lot/date code, and RoHS compliance.
Products are shipped in reinforced export cartons with anti-static and shock-absorbing protection.
Available shipping methods include DHL, FedEx, UPS, air freight, and sea freight, supporting both samples and bulk orders.
▷ Proven Compatibility
Fully compliant with IEEE 802.3 Ethernet & PoE standards, LINK-PP RJ45 MagJacks are widely compatible with major PHY chipsets and network platforms.
▷ Integrated Magnetics, Lower BOM Cost
Built-in magnetics reduce external components, simplify PCB layout, and improve manufacturing yield.
▷ Excellent Signal Integrity
Optimized for low insertion loss, low return loss, high CMRR, and EMI suppression, ensuring stable Ethernet performance.
▷ Industrial-Grade Reliability
Designed for 750+ mating cycles, robust shielding, and stable operation across commercial and industrial temperature ranges.
▷ Certified & Compliant
RoHS compliant, UL-recognized, and manufactured under strict quality control systems.
▷ OEM / ODM Flexibility
Pin-to-pin replacements for leading brands, with custom LEDs, shielding, PoE support, and packaging options available.
▷ Cost-Effective Global Supply
Direct factory pricing, stable lead times, and global logistics support for samples to mass production.
