Product Details
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: 71F-1202GYDZ2NL
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/60K
Price: $0.11-$24
Packaging Details: Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 180K/Month
Designe PN#: |
71F-1202GYDZ2NL |
Made In China: |
LPJ17402AHNL |
Family: |
Rj45 Network Port |
Interface: |
10/100Base-TX |
LED: |
Flexible |
Samples: |
Available |
Designe PN#: |
71F-1202GYDZ2NL |
Made In China: |
LPJ17402AHNL |
Family: |
Rj45 Network Port |
Interface: |
10/100Base-TX |
LED: |
Flexible |
Samples: |
Available |

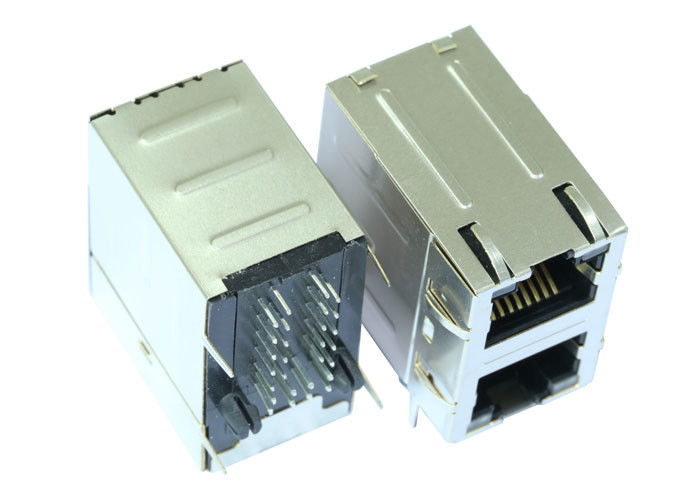

| 2X1 Ethernet RJ45 Connector with 10/100 Base-T Integrated Magnetics,Green/Yellow LED,Tab Up/Tab Down,RoHS | |
| LINK-PP Part Number | LPJ17402AHNL |
| YDS Part Number | 71F-1202GYDZ2NL |
| Application-Lan | ETHERNET(NoN PoE) |
| AutomDX | YES |
| Bst Circuit | YES |
| Configuration RX | T,C |
| Configuration TX | T,C |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Cores per Port | 4 |
| Diodes | NO DIODES |
| LED Option | GREEN/YELLOW |
| Latch | TAB UP/TAB DOWN |
| Number of Ports | 2X1 |
| PCB | FR4 |
| PCB Mount Angle | SIDE ENTRY |
| PCB Retaining Post | T POST |
| Package Height (Inches) | 0.996 |
| Package Height (mm) | 25.30 |
| Package Length (Inches) | 1.122 |
| Package Length (mm) | 28.49 |
| Package Width (Inches) | 0.677 |
| Package Width (mm) | 17.20 |
| Pin Type | THT SOLDER |
| RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search | YES |
| Shield EMI Tabs | WITH |
| Speed | 10/100 BASE-T |
| Temperature | 0 TO + 70℃ |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
Application field
1) MEDICAL
Diagnostic, Surgical Equipment, Patient Monitoring, Patient Monitoring, Hand Held Devices, Surgical Generators, In-Home Dialysis
2) NETWORKING
Data Center Switching, Routers, Servers & Server I/O, Server Blades,100G Core Switches,NIC Cards, 3U Top Rack & End of Rack, 40G Firewall, Patch Panels & Wiring Closet
3)TELECOM/DATACOM
Set-Top Boxes, Home Hub, Cell Phones, Satellites, Bay Stations, PBX, Optical Networking, Hand Held Devices
3) CONSUMER
Digital Cameras, Video Recorders, GPS-Navigation, Portable Media Players, Game Controllers, Projectors, LCD Televisions, Hand Held Devices
4) SECURITY
Control Panels, Fire Alarm Zones, Hand Held Devices
