Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: 95501-6889
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.09-$1.85
Packaging Details: 50PCS/tray;1200PCS/carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 4000K/month
Specification: |
95501-6889 |
Cross Part NO: |
LPJE8802NNL |
Mounting: |
Thru-hole R/A |
Samples: |
Available 2-3 Pcs |
Latch: |
Tab Down |
Files: |
PDF/3D/ISG/Stp/Step/Datasheet |
Specification: |
95501-6889 |
Cross Part NO: |
LPJE8802NNL |
Mounting: |
Thru-hole R/A |
Samples: |
Available 2-3 Pcs |
Latch: |
Tab Down |
Files: |
PDF/3D/ISG/Stp/Step/Datasheet |

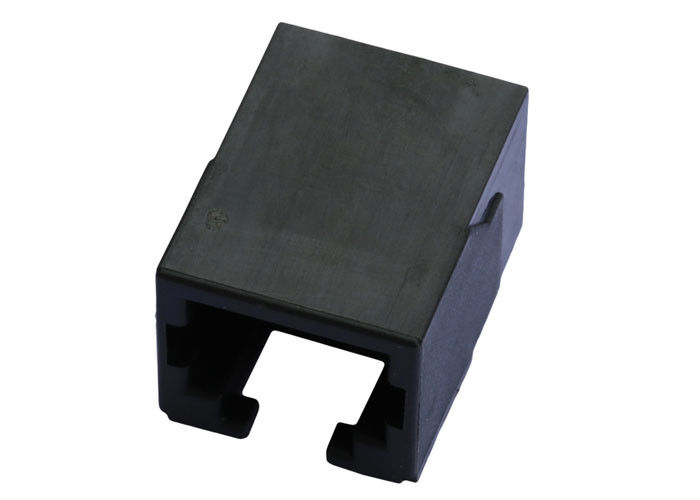

| SMD RJ45 8P8C Connector without Integrated Magnetics,wihtout LED,Tab Up,RoHS | |
| LINK-PP Part Number | LPJE8802NNL |
| Molex Part Number | 95501-6889 |
| Application-Lan | ETHERNET |
| AutomDX | YES |
| Bst Circuit | YES |
| Configuration RX | T,C |
| Configuration TX | T,C |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Cores per Port | NON |
| Diodes | NO DIODES |
| LED Option | Without |
| Latch | TAB Down |
| Number of Ports | 1X1 |
| PCB | FR4 |
| PCB Mount Angle | SIDE ENTRY |
| PCB Retaining Post | T POST |
| Package Height (Inches) | 0.453 |
| Package Height (mm) | 11.50 |
| Package Length (Inches) | 0.713 |
| Package Length (mm) | 18.10 |
| Package Width (Inches) | 0.591 |
| Package Width (mm) | 15.00 |
| Pin Type | SURFACE MOUNT |
| RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search | YES |
| Shield EMI Tabs | WITHOUT |
| Speed | - |
| Temperature | -40 TO +85℃ |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
Why Choose Us
World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers
100% Guarantee Qualtiy
• Manufactured Under Strict Controls.
• 100% Tested (Not Just Batch Tested)
• LINK-PP Is OEM Of TE (Tyco) For 9 Years
• Successful Customer: Texas Instruments Samsung Cisco Siemens And Intel…
• LINK-PP Is The Preferred Supplier Of TI (Texas Instruments)
• Quality Guarantee:6 Years
LINK-PP Corporate Policy
• The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction
Through Continuous Improvements In Quality, Delivery And Service
• LINK-PP Is Committed To And Expects Quality Performance From Every Employee
• The Company Standard Is Defect-Free Products And Services
Professional Certification
• ISO 9001:2008
• UL Certification
• Reach Cetitifaction
• RoHS Compliance
• Active Environmental Policy
Competitive Price And Service
• More Competitive Price Than Pulse Tyco Halo And Amphenol
• Delivery Time:2-3 Weeks After Orders
• Free Samples Are Available
• Provide New Design For Customer Requirements
• 90% Off Shipping Cost By DHL UPS DEDEX Or TNT
FAQ
Q:Are you a factory or a trading company?
A:We are factory direct sales, have quality assurance, and can also meet your customization requirements.
Q:Can I get a free sample?
A:Of course, you can get 3-5 samples, and you need to pay for the shipping cost of the sample.
Q:How long is your delivery?
A:5-7 days in case of stock, normal is 2-3 weeks delivery
Q:What are your payment terms?
A:TT/LC/DP/DA/Paypal/Western Union/MoneyGram
Q:What are the ways you transport goods?
A:90% Off Shipping Cost By DHL UPS DEDEX Or TNT
