Product Details
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: RM5-ZZ-0003
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/60K
Price: $0.11-$24
Packaging Details: Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 180K/Month
Part Number: |
LPJG47549B47NL |
Ports: |
2x4 |
Applications: |
10/100/1000 Base-TX |
Mounting Type: |
Thru |
Shielding: |
Shielded, EMI Finger |
Cross RF: |
RM5-ZZ-0003 |
Part Number: |
LPJG47549B47NL |
Ports: |
2x4 |
Applications: |
10/100/1000 Base-TX |
Mounting Type: |
Thru |
Shielding: |
Shielded, EMI Finger |
Cross RF: |
RM5-ZZ-0003 |

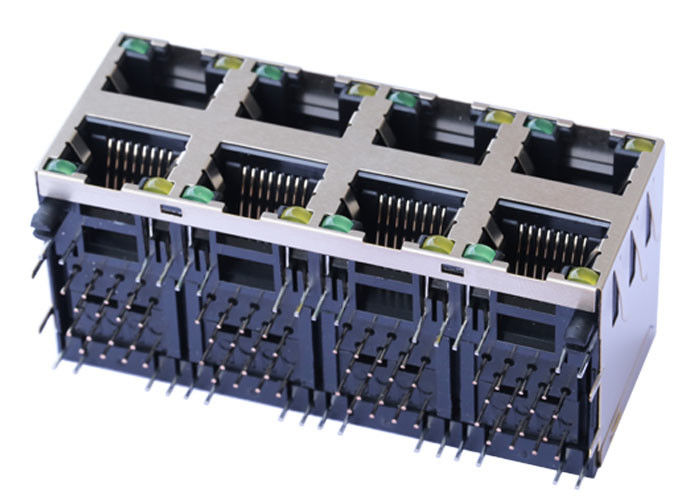

| 2X4 Port 8P8C RJ45 Female Connector with 1000 Base-T Transformer,Yellow&Green/Yellow&Green LED,Tab Up/Down,RoHS | |
| LINK-PP Part Number | LPJG47549B47NL |
| UDE Part Number |
RM5-ZZ-0003
|
| Application-Lan | ETHERNET(NoN PoE) |
| AutomDX | YES |
| Bst Circuit | YES |
| Configuration RX | T,C |
| Configuration TX | T,C |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Cores per Port | 8 |
| Diodes | NO DIODES |
| LED Option | Yellow&Green/Yellow&Green LEDS |
| Latch | TAB UP/TAB DOWN |
| Number of Ports | 2X4 |
| PCB | FR4 |
| PCB Mount Angle | SIDE ENTRY |
| PCB Retaining Post | T POST |
| Package Height (Inches) | 1.015 |
| Package Height (mm) | 25.79 |
| Package Length (Inches) | 1.116 |
| Package Length (mm) | 28.35 |
| Package Width (Inches) | 2.330 |
| Package Width (mm) | 59.18 |
| Pin Type | THT SOLDER |
| RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search | YES |
| Shield EMI Tabs | WITH |
| Speed | 1000 Base-T |
| Temperature | 0 TO + 70℃ |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
