5406562-2 Shielded 1x2 Port RJ45 Magjack Connector Without Magnetics LPJEF102CNL

Product Details

Place of Origin: GuangDong, China

Brand Name: LINK-PP

Certification: ISO9001,SGS,UL,CE,REACH163

Model Number: 5406562-2

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/25K

Price: $0.11-$12

Packaging Details: Tray

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 208K/Month

Get Best Price
Highlight:

multi port connector

,

dual rj45 jack

Midcom PN:
5406562-2
Made In China:
LPJEF102CNL
Mounting:
Shielded W/LEDs
Port:
Dual
File:
PDF/3D/ISG/Stp/Step/Datasheet
Sample:
Free
Midcom PN:
5406562-2
Made In China:
LPJEF102CNL
Mounting:
Shielded W/LEDs
Port:
Dual
File:
PDF/3D/ISG/Stp/Step/Datasheet
Sample:
Free

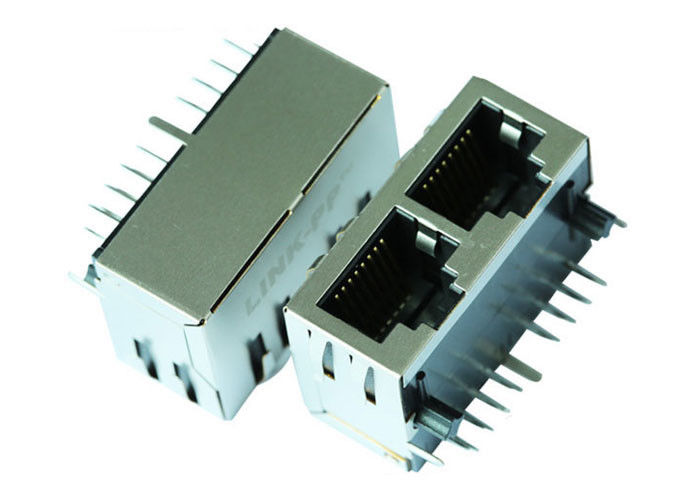

5406562-2 Shielded 1x2 Port RJ45 Magjack Connector Without Magnetics LPJEF102CNL
5406562-2 Shielded 1x2 Port RJ45 Magjack Connector Without Magnetics LPJEF102CNL

Shielded 1x2 Port RJ45 Magjack Connector without Integrated Magnetics,without LED,Tab Down,RoHS
LINK-PP Part Number LPJEF102CNL
Tyco Part Number 5406562-2
Application-Lan ETHERNET(NoN PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port -
Diodes NO DIODES
LED Option Without LEDs
Latch TAB Down
Number of Ports 1X2
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (Inches) 0.537
Package Height (mm) 13.65
Package Length (Inches) 0.837
Package Length (mm) 21.27
Package Width (Inches) 1.225
Package Width (mm) 31.12
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITH
Speed Without Magnetics
Temperature -40 TO 85℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT
