Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: Contact us for compliance documentation
Model Number: LPJG26928AFNL
Payment & Shipping Terms
Minimum Order Quantity: Contact us to confirm
Price: Request quotation
Packaging Details: Tray
Delivery Time: Confirm availability
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 208K/Month
Part Number: |
LPJG26928AFNL |
Application-Lan: |
Ethernet(PoE+) |
Gender: |
Female,Receptacle |
Contact Plating: |
Confirm With LINK-PP |
RJ45 Connector: |
1x2 Dual Port |
Technical Documentation: |
Available On Request |
Part Number: |
LPJG26928AFNL |
Application-Lan: |
Ethernet(PoE+) |
Gender: |
Female,Receptacle |
Contact Plating: |
Confirm With LINK-PP |
RJ45 Connector: |
1x2 Dual Port |
Technical Documentation: |
Available On Request |

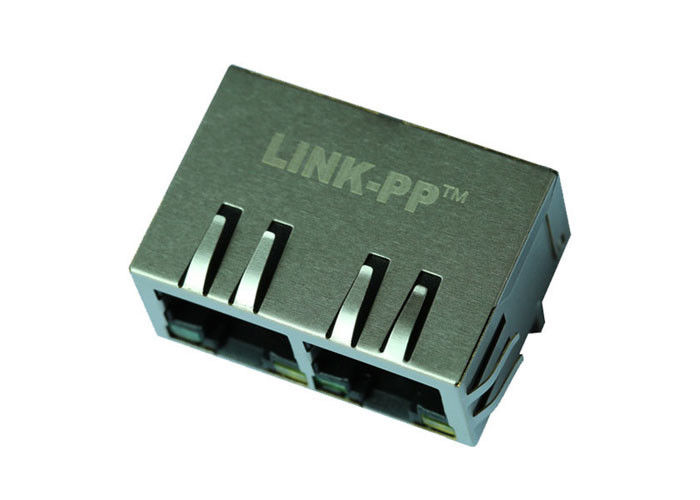

The LINK-PP LPJG26928AFNL is a 1x2 dual port RJ45 connector for 10/100/1000BASE-T Ethernet and PoE+ applications. Its two-port configuration supports PCB designs that require multiple Ethernet connections in one connector assembly. Contact us for the product drawing, availability and quotation.
| Part number | LPJG26928AFNL |
|---|---|
| Port configuration | 1x2 dual port |
| Ethernet speed | 10/100/1000BASE-T |
| Application | Ethernet PoE / PoE+; IEEE 802.3af / 802.3at |
| Mounting / entry | Through-hole solder / side entry |
| Latch orientation | Tab down |
| LED option | Green / green |
| Cores per port | 8 |
| Diodes | No diodes |
| Turns ratio, RX / TX | 1CT:1CT / 1CT:1CT |
| Operating temperature | -40 to +85 °C |
| Shield EMI tabs | With |
This multi-port RJ45 connector can be considered for network equipment and PCB designs requiring two Gigabit Ethernet ports with PoE+ capability. Confirm the connector's electrical and mechanical compatibility with the system design.
Contact US for the price, minimum order quantity, sample availability, lead time and technical documentation. Please include the part number LPJG26928AFNL and your required quantity in your inquiry.
It is listed as a 1x2 RJ45 connector with two ports arranged in one row.
The existing product listing specifies 10/100/1000BASE-T and PoE / PoE+ applications. Confirm the requirements of your design with LINK-PP.
Contact LINK-PP with the part number to request the latest available drawing and technical documentation.
