Product Details
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: ISO9001,SGS,UL,CE,REACH
Model Number: LPJG26925AENL.
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.11-$12
Packaging Details: Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 208K/Month
Part Number: |
LPJG26925AENL |
Apllication: |
1000 Base-TX |
Original Munafactuer: |
LINK-PP |
Project Application: |
NETWORK INTERFACE CARD |
File: |
PDF/3D/ISG/Stp/Step/Datasheet |
Sample: |
Free |
Part Number: |
LPJG26925AENL |
Apllication: |
1000 Base-TX |
Original Munafactuer: |
LINK-PP |
Project Application: |
NETWORK INTERFACE CARD |
File: |
PDF/3D/ISG/Stp/Step/Datasheet |
Sample: |
Free |
1. 2x 10/100/1000Mbps
2. POE/POE+ RJ45 PCB Jack
3. IEEE802.3af/IEEE802.3at

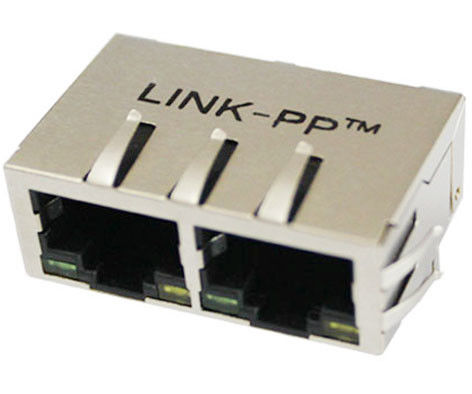

| Shielded 1x2 Port RJ45 Magjack Connector with 10/100/1000 Base-T Integrated Magnetics,With POE+,Yellow/Green LED,Tab Down,RoHS | |
| LINK-PP Part Number | LPJG26925AENL |
| Application-Lan | ETHERNET(PoE+) |
| AutomDX | YES |
| Bst Circuit | YES |
| Configuration RX | T,C |
| Configuration TX | T,C |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Cores per Port | 8 |
| Diodes | NO DIODES |
| LED Option | Green/Green LEDs |
| Latch | TAB Down |
| Number of Ports | 1X2 |
| PCB | FR4 |
| PCB Mount Angle | SIDE ENTRY |
| PCB Retaining Post | T POST |
| Package Height (Inches) | 0.527 |
| Package Height (mm) | 13.39 |
| Package Length (Inches) | 0.839 |
| Package Length (mm) | 21.30 |
| Package Width (Inches) | 1.213 |
| Package Width (mm) | 30.80 |
| Pin Type | THT SOLDER |
| RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search | YES |
| Shield EMI Tabs | WITH |
| Speed | 10/100/1000 Base-T |
| Temperature | 0 TO + 70℃ |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
