Product Details
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: ISO9001,SGS,UL,CE,REACH
Model Number: LPJG27082AHNL
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.09-$1.85
Packaging Details: Tray&Carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3000000/Month
Spec: |
LPJG27082AHNL |
I/O: |
2x2 1000 Mbit Ethernet |
Std: |
IEEE 802.3af Power Over Ethernet (PoE) |
Signal: |
LED Indicators |
Drawing: |
3D Step IGS PDF |
Mounting: |
DIP On PCB |
Gender: |
Female Socket |
Samples: |
Available |
Spec: |
LPJG27082AHNL |
I/O: |
2x2 1000 Mbit Ethernet |
Std: |
IEEE 802.3af Power Over Ethernet (PoE) |
Signal: |
LED Indicators |
Drawing: |
3D Step IGS PDF |
Mounting: |
DIP On PCB |
Gender: |
Female Socket |
Samples: |
Available |
| LINK-PP Part Number | LPJG27082AHNL |
| Application-Lan | ETHERNET(POE) |
| AutomDX | YES |
| Bst Circuit | YES |
| Configuration RX | T,C |
| Configuration TX | T,C |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Cores per Port | 8 |
| Diodes | NO DIODES |
| LED Option | GREEN/YELLOW |
| Latch | TAB DOWN/UP |
| Number of Ports | 2X2 |
| PCB | FR4 |
| PCB Mount Angle | SIDE ENTRY |
| PCB Retaining Post | T POST |
| Package Height (Inches) | 1.015 |
| Package Height (mm) | 25.79 |
| Package Length (Inches) | 1.508 |
| Package Length (mm) | 38.30 |
| Package Width (Inches) | 1.228 |
| Package Width (mm) | 31.18 |
| Pin Type | THT SOLDER |
| RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search | YES |
| Shield EMI Tabs | WITH |
| Speed | 10/100/1000 Base-T |
| Temperature | -40 TO + 85℃ |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
POE Magnetics Rj45 Jack Latch-Down
Applications
Why Choose Us
World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers
Cooperative Partner:

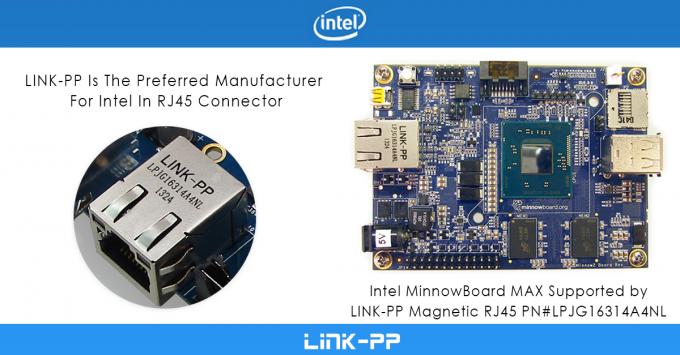

• Intel
LINK-PP Is the preferred supplier of Intel.
LINK-PP LPJG16314A4NL is used in MinnowBoard max of Intel.

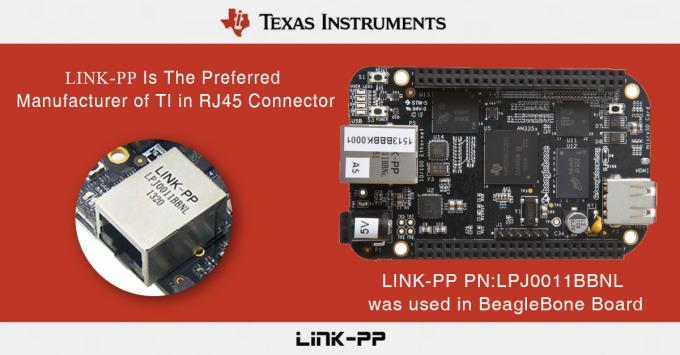

• Texas Instruments
LINK-PP is the preferred supplier of TI.
Welcome to visit the TI website: http://www.ti.com/tool/beaglebk#0
You will look at our logo "LINK-PP" on BeagleBone Board.
Quick Response---we are commited to deliver our quick response within one hour in working time and 24 hours in holiday.
Over 20 Years’ Experience---we’ve been in this field since 1997.and designed and produced wide range of products with our professional R&D team and Sales.
Competitive Price---we continuously strive to find ways of reducing our production costs, and passing the savings to our valued customers.
Quality Assurance---we are commited to provide high quality products and professional service. Which comply with CE RoHS.
Fast Delivery---kinds of shipment ways for your selection at lowest cost,3-5 days for samples.7-10 days for bulk purchase.
Free Sample---we offer you free samples to test the quality and dimensions before bulk purchase. We help you to controlyour risk.
Professional Certification---ISO 9001:2008,ISO 14001:2008, UL CE FCC Reach Certification, RoHS Compliance
