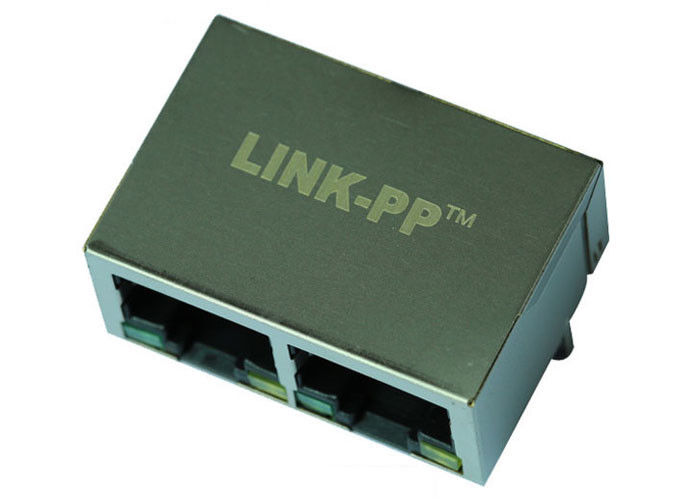

Product Details
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: ISO9001,SGS,UL,CE,REACH
Model Number: LPJG26928BENL
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.09-$1.85
Packaging Details: 18PCS/Tray,18Trays/Carton,324PCS/Carton,Size 37*30*30,Weight 11KG
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3000000/Month
Specification: |
LPJG26928BENL |
Original Munafactuer: |
LINK-PP |
Ethernet: |
1000Mbps Power Over Ethernet |
Hipot: |
2250V Rms |
Samples: |
Available |
File: |
PDF/3D/ISG/Stp/Step/Datasheet |
Specification: |
LPJG26928BENL |
Original Munafactuer: |
LINK-PP |
Ethernet: |
1000Mbps Power Over Ethernet |
Hipot: |
2250V Rms |
Samples: |
Available |
File: |
PDF/3D/ISG/Stp/Step/Datasheet |
| LINK-PP Part Number | LPJG26928BENL |
| Application-Lan | ETHERNET(PoE+) |
| AutomDX | YES |
| Bst Circuit | YES |
| Configuration RX | T,C |
| Configuration TX | T,C |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Cores per Port | 8 |
| Diodes | NO DIODES |
| LED Option | GREEN/YELLOW |
| Latch | TAB DOWN |
| Number of Ports | 1X2 |
| PCB | FR4 |
| PCB Mount Angle | SIDE ENTRY |
| PCB Retaining Post | T POST |
| Package Height (Inches) | 0.527 |
| Package Height (mm) | 13.39 |
| Package Length (Inches) | 0.839 |
| Package Length (mm) | 21.30 |
| Package Width (Inches) | 1.213 |
| Package Width (mm) | 30.80 |
| Pin Type | THT SOLDER |
| RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search | YES |
| Shield EMI Tabs | WITH |
| Speed | 10/100/1000 Base-T |
| Temperature | -40 TO + 85℃ |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
