Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: HR901143C
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000
Price: Supportive
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 4600K.PCS/Month
Specification: |
HR901143C |
P/N: |
LPJG0843CNL |
Schematic: |
8 Coils, 1CT:1CT |
LEDs: |
Optional |
Samples: |
Available |
File: |
PDF/3D/ISG/Stp/Step/Datasheet |
Specification: |
HR901143C |
P/N: |
LPJG0843CNL |
Schematic: |
8 Coils, 1CT:1CT |
LEDs: |
Optional |
Samples: |
Available |
File: |
PDF/3D/ISG/Stp/Step/Datasheet |

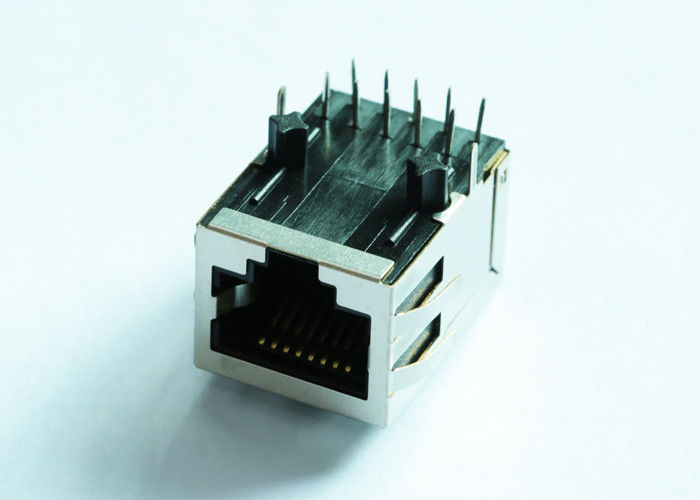

1x1 Port RJ45 Female Connector with10/100/1000 Base-T Integrated Magnetics,Without LED,Tab Down,RoHS | |
LINK-PP Part Number | LPJG0843CNL |
Hanrun Part Number | HR901143C |
Application-Lan | ETHERNET(NoN PoE) |
AutomDX | YES |
Bst Circuit | YES |
Configuration RX | T,C |
Configuration TX | T,C |
Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
Cores per Port | 8 |
Diodes | NO DIODES |
LED Option | without LEDs |
Latch | TAB Down |
Number of Ports | 1X1 |
PCB | FR4 |
PCB Mount Angle | SIDE ENTRY |
PCB Retaining Post | T POST |
Package Height (Inches) | 0.524 |
Package Height (mm) | 13.30 |
Package Length (Inches) | 0.837 |
Package Length (mm) | 21.25 |
Package Width (Inches) | 0.627 |
Package Width (mm) | 15.93 |
Pin Type | THT SOLDER |
RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
Search | YES |
Shield EMI Tabs | Without |
Speed | 10/100/1000BASE-T |
Temperature | 0 TO 70℃ |
Turns Ratio RX | 1CT:1CT |
Turns Ratio TX | 1CT:1CT |
Why Choose Us
World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers
100% Guarantee Qualtiy
•Successful Customer: Texas Instruments Samsung Cisco Siemens And Intel…
•Manufactured Under Strict Controls.
•100% Tested (Not Just Batch Tested)
•LINK-PP Is OEM Of TE (Tyco) For 9 Years
•LINK-PP Is The Preferred Supplier Of TI (Texas Instruments)
•Quality Guarantee:6 Years
Competitive Price And Service
•More Competitive Price Than Pulse Tyco Halo And Amphenol
•Delivery Time:2-3 Weeks After Orders
•Free Samples Are Available
•Provide New Design For Customer Requirements
•90% Off Shipping Cost By DHL UPS DEDEX Or TNT
LINK-PP Corporate Policy
•The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction
Through Continuous Improvements In Quality, Delivery And Service
• LINK-PP Is Committed To And Expects Quality Performance From Every Employee
• The Company Standard Is Defect-Free Products And Services
Professional Certification
•ISO 9001:2008
•UL Certification
•Reach Cetitifaction
•RoHS Compliance
•Active Environmental Policy
FAQ
Q: Are you trading company or manufacturer ?
A:We are factory.
Q: How long is your delivery time?
A: Generally it is 3-7 days if the goods are in stock. or it is 2-3 Weeks if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight..
Q: What is your terms of payment ?
A:TT/LC/DP/DA/Paypal/Western Union/MoneyGram
