Home > products > RJ45 Modular Jack > RJHSE-5485 Single Port Rj45 Female Connector With LEDs LPJE101AWNL

RJHSE-5485 Single Port Rj45 Female Connector With LEDs LPJE101AWNL

Product Details

Place of Origin: Guangdong,China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: RJHSE-5485

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/25K

Price: $0.09-$1.85

Packaging Details: 50pcs/tray,1200pcs/carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 250000-320000/Month

Get Best Price
Highlight:

rj45 smd connector

,

shielded rj45 plugs

PN#:
RJHSE-5485
Made In China:
LPJE101AWNL
TAB Direction:
Down
LED Indicator:
LED Colors Can Be Selected
Samples Available:
3-5PCS
File:
PDF/3D/ISG/Stp/Step/Datasheet
PN#:
RJHSE-5485
Made In China:
LPJE101AWNL
TAB Direction:
Down
LED Indicator:
LED Colors Can Be Selected
Samples Available:
3-5PCS
File:
PDF/3D/ISG/Stp/Step/Datasheet

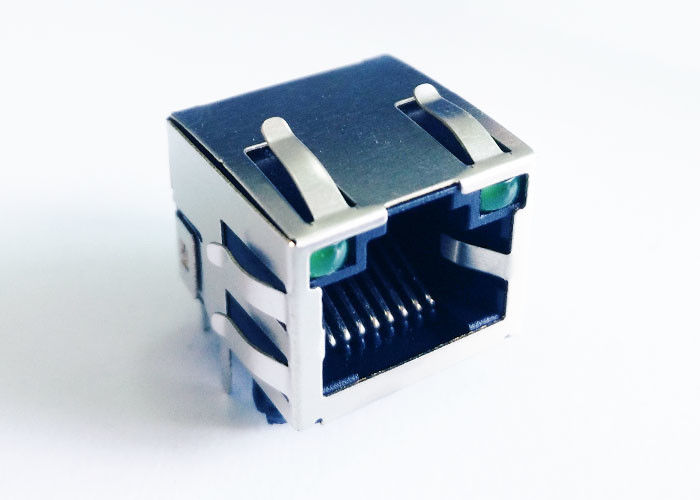

RJHSE-5485 Single Port Rj45 Female Connector With LEDs LPJE101AWNL
RJHSE-5485 Single Port Rj45 Female Connector With LEDs LPJE101AWNL


Description:

Unshielded 1x1 Port RJ45 Female Connector without Integrated Magnetics,Green/Green LED,Tab UP,RoHS
LINK-PP Part Number LPJE101AWNL
Other Part Number RJHSE-5485
Application-Lan ETHERNET(NoN PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port -
Diodes NO DIODES
LED Option Green/Green LEDs
Latch TAB UP
Number of Ports 1X1
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (Inches) 0.516
Package Height (mm) 13.1
Package Length (Inches) 0.620
Package Length (mm) 15.75
Package Width (Inches) 0.640
Package Width (mm) 16.26
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs With
Speed RJ45 without magnetics
Temperature -40 TO 85℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT


RJHSE-5485 Single Port Rj45 Female Connector With LEDs LPJE101AWNL 0
