2x4 Ethernet Stacked Rj45 Jack Solder Termination JX20-0114NL With LED LPJX47312A43NL

China 2x4 Ethernet Stacked Rj45 Jack Solder Termination JX20-0114NL With LED LPJX47312A43NL supplier
2x4 Ethernet Stacked Rj45 Jack Solder Termination JX20-0114NL With LED LPJX47312A43NL supplier 2x4 Ethernet Stacked Rj45 Jack Solder Termination JX20-0114NL With LED LPJX47312A43NL supplier

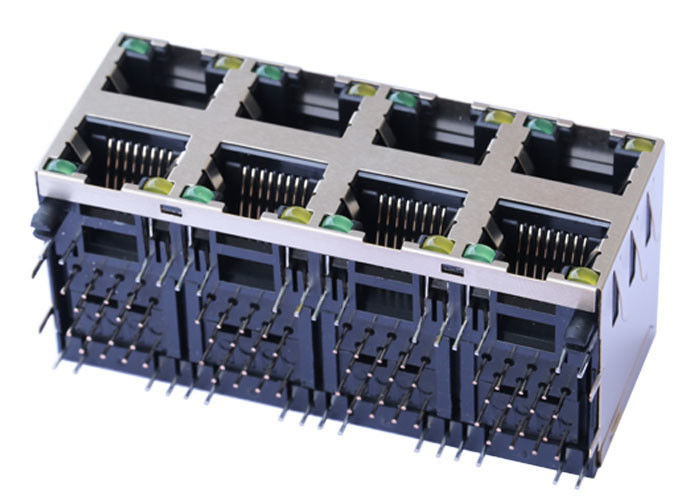

Large Image :  2x4 Ethernet Stacked Rj45 Jack Solder Termination JX20-0114NL With LED LPJX47312A43NL

Product Details:

Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: ISO9001,SGS,UL,CE,REACH
Model Number: JX20-0114NL

Payment & Shipping Terms:

Minimum Order Quantity: 300
Price: Supportive&Competitive
Packaging Details: 18PCS/Tray,18Trays/Carton= 324PCS= 37*30*30CM=11KG
Delivery Time: Stock or 3 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 3000000/Month
Contact Now
Detailed Product Description
Part No: JX20-0114NL Specification: LPJX47312A43NL
Ethernet: Cat5/5e Mounting: Thru-hole
Termination: Solder Samples: Available

JX20-0114NL 2x4 Ethernet Stacked Rj45 Jack With LED LPJX47312A43NL



2X4 Port 8P8C RJ45 Female Connector with 10/100 Base-T Transformer,Green&Yellow/Yellow&Green LED,Tab Up/Down,RoHS
LINK-PP Part Number LPJX47312A43NL
Hanrun Part Number
JX20-0114NL
Application-Lan ETHERNET(NoN PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port 4
Diodes NO DIODES
LED Option Green&Yellow/Yellow&Green LEDS
Latch TAB UP/TAB DOWN
Number of Ports 2X4
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (Inches) 1.015
Package Height (mm) 25.79
Package Length (Inches) 1.248
Package Length (mm) 31.7
Package Width (Inches) 2.330
Package Width (mm) 59.18
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITH
Speed 10/100 Base-T
Temperature -40 TO + 85℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT



Application Range

• Audio / Video product:MP3, MP4, DVD, stereo system

• Digital devices: digital camera, digital video

• Remote control: Vehicle, rolling door, Home security products

• Communication products: mobiles, car telephone, telephone, building equipment, PDA etc.

• Household Appliances: TV, microwave oven, electric cooker, electric hair drier, electronic scale, Body Fat &Water Scale, Kitchen Scale.

• Security Products: Videophone, Monitor etc.

• Toy: electronic toy etc.

• Computer products: Camera, recording pen etc.

• Fitness equipment: running machine, massage chair, timer etc.

• Medical Equipment: sphygmomanometer, thermometer, the hospital call system and other similar products.



Why Choose Us

World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers

100% Guarantee Qualtiy
•Manufactured Under Strict Controls.
•100% Tested (Not Just Batch Tested)
•LINK-PP Is OEM Of TE (Tyco) For 9 Years
•Successful Customer: Texas Instruments Samsung Cisco Siemens And Intel…
•LINK-PP Is The Preferred Supplier Of TI (Texas Instruments)
•Quality Guarantee:6 Years

XWRJ-1104D5019-1 Magnetic RJ45 10/100 Base-T Jack with Magnetic Module LPJ2011KONL

Competitive Price And Service
•More Competitive Price Than Pulse Tyco Halo And Amphenol
•Delivery Time:2-3 Weeks After Orders
•Free Samples Are Available
•Provide New Design For Customer Requirements
•90% Off Shipping Cost By DHL UPS DEDEX Or TNT
