Product Details
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: ISO9001,SGS,UL,CE,REACH,RoHS
Model Number: J0C-0005NLT
Payment & Shipping Terms
Minimum Order Quantity: 720pcs
Price: Negotiable & Discount
Packaging Details: 120pcs/reel,6Reel=35*35*35cm=9KGS(720pcs)/Carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 5000000/Month
Connection Style: |
SIDE ENTRY, LATCH-DOWN |
Data Rate: |
100BASE-TX |
PoE: |
NONE |
Length: |
21.59mm |
Width: |
16.26mm |
Height: |
14.38mm |
Connection Style: |
SIDE ENTRY, LATCH-DOWN |
Data Rate: |
100BASE-TX |
PoE: |
NONE |
Length: |
21.59mm |
Width: |
16.26mm |
Height: |
14.38mm |

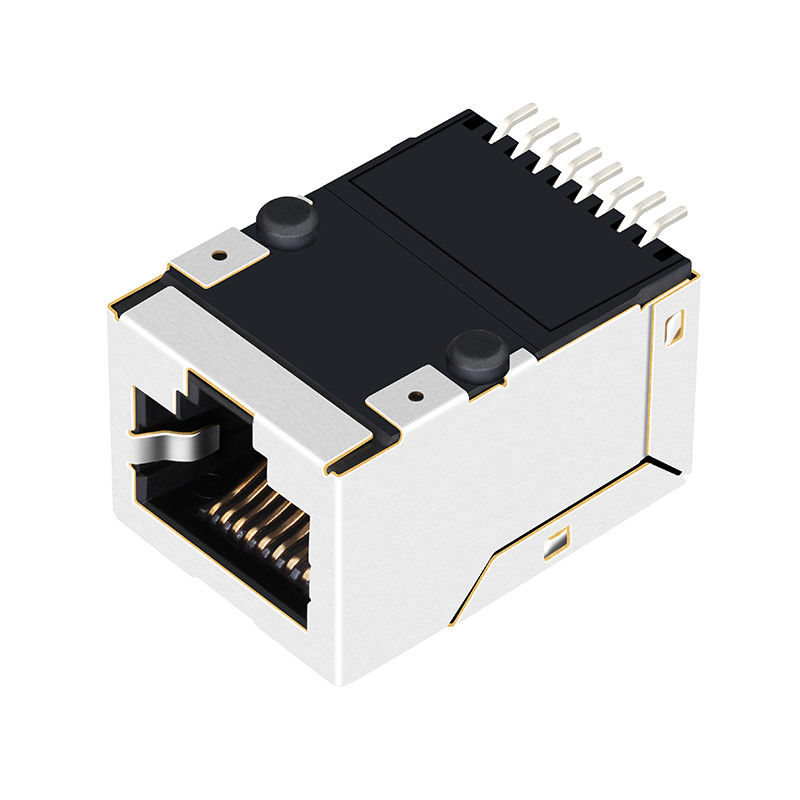

The J0C-0005NLT is a 100 Base-TX (Fast Ethernet) surface mount RJ45 connector with a 1x1 single port and a tab-down design. Integrated magnetics can improve signal integrity. With a minimum isolation of 1500Vrms ensuring high performance and maximum EMI suppression. This SMT RJ45 Connector is fully RoHS compliant with a peak wave reflow temperature rating of 245°C. It has a side entry, and latch-down connection style, and is shielded for enhanced protection. The J0C-0005NLT operates within a temperature range of 0 to +70°C is ideal for efficient and reliable networking solutions. It supports AutoMDIX and conforms to IEEE 802.3 specifications commonly used for set-top boxes and network interface cards (NICs).
|
CONTACT MATING AREA PLATING |
GOLD 15 U'' |
|
LATCH |
DOWN |
|
LED OPTION |
NO LEDS |
|
NUMBER OF PORTS |
1X1 |
|
PACKAGE |
SMT |
| EMI FINGLES | YES |
|
PACKAGE HEIGHT MM |
14.38 |
|
PACKAGE LENGTH MM |
21.59 |
|
PACKAGE WIDTH MM |
16.26 |
|
PCB MOUNT ANGLE |
SIDE ENTRY |
|
POE RATING |
NON-POE |
|
SPEED |
100BASE-TX |
| SHIELDING | SHIELDED |
|
TEMPERATURE |
0 TO 70℃ |
