J1L-0103NL Low-Profile RJ45 PCB Jack Tab-up 10/100/1000 Magnetics

Good quality Magnetic RJ45 Jack for sales
Good quality Magnetic RJ45 Jack for sales
WOW , 100% Tested ,Zero Defective

—— TI

LINK-PP is Our Best Supplier in China

—— Intel

Thanks a Lot For Supplying Excellent RJ45 And Transformer ,LINK-PP Deserve the Consideration Worldwidely

—— Cisco

LINK-PP is Flex type A Vendor For All RJ45 Connector and Transformer

—— Flextronics

I'm Online Chat Now

J1L-0103NL Low-Profile RJ45 PCB Jack Tab-up 10/100/1000 Magnetics

China J1L-0103NL Low-Profile RJ45 PCB Jack Tab-up 10/100/1000 Magnetics supplier
J1L-0103NL Low-Profile RJ45 PCB Jack Tab-up 10/100/1000 Magnetics supplier J1L-0103NL Low-Profile RJ45 PCB Jack Tab-up 10/100/1000 Magnetics supplier

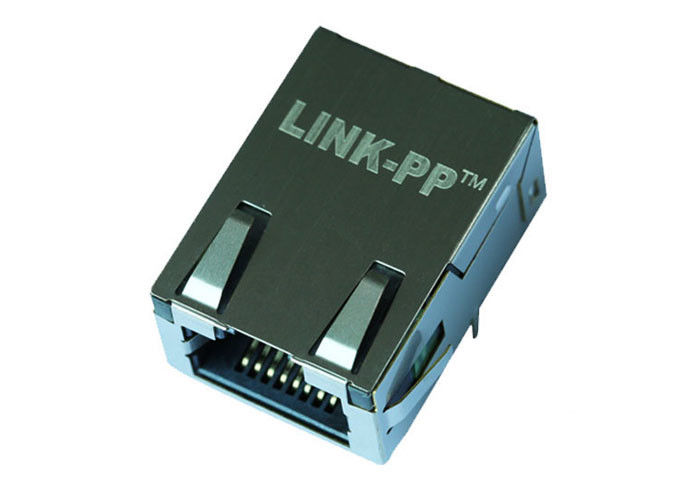

Large Image :  J1L-0103NL Low-Profile RJ45 PCB Jack Tab-up 10/100/1000 Magnetics

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO 9001,ISO 14001,UL,SGS,REACH168
Model Number: J1L-0103NL

Payment & Shipping Terms:

Minimum Order Quantity: 200/500/1200
Price: Supportive
Packaging Details: 60pcs/tray,or Reel Package
Delivery Time: Stock or 4-5 weeks
Payment Terms: TT,Paypa,West Union
Supply Ability: 2800K-PCS/Month
Contact Now
Detailed Product Description
Part Number: J1L-0103NL Connector Type: Gigabit Low Profile
Applications: 10/100/1000 Lan Mounting Type: Through Hole
Orientation: 90~ Angle (Right) Termination: Solder
Shielding: Shielded, EMI Finger File: PDF/3D/ISG/Stp/Step/Datasheet

J1L-0103NL Low-Profile RJ45 PCB Jack Tab-up 10/100/1000 Magnetics

PART NUMBER J1L-0103NL
CONTACT MATING AREA PLATING GOLD 50 U''
LATCH UP
LED OPTION GREEN & GREEN
NUMBER OF PORTS 1X1
PACKAGE THT
PACKAGE HEIGHT MM 11.300
PACKAGE LENGTH MM 26.060
PACKAGE WIDTH MM 17.580
PCB MOUNT ANGLE SIDE ENTRY
POE RATING NON-POE
ROHS COMPLIANT YES-RoHS-6
SPEED 1000BASE-T
TEMPERATURE 0 TO 70
TURNS RATIO 1:1

Descriptions

Mag45 - RJ45 with Integrated Magnetics

Designing Model: 【J1L-0103NL】



♦ J1L-0103NL Low Profile TE Magjack
♦ Low Profile Rj45 plug J1L-0103NL
♦1000Base-T Low Profile Rj45 With Magnetics
♦ Low Profile Rj45 PCB
♦ Low Profile Rj45 10/100/1000 With Magnetics
♦ low profile Rj45 connector

♦ Designed for network interface card application.
♦ Designed to meet IEEE802.3u requirement.
♦ Available in all turn ratios used by LAN ICmanufactures.
♦ Primary center taps available for additional EMIreduction.
♦ Simplest magnetic component to place and route on PCB.
♦ Conserves minimizing PCB space.

♦ Mass Production Model:【LPJXXXXNL】



MAG.REVERSE LATCH ,

LED optional ; EMI-finger Optional.


Description

1840718-8 Low Profile TE Magjack Rj45 PCB Gigabit Tab-up 10/100/1000 Magnetics
1. Product Type Features:
  1) Product Type = Connector
  2) Jack Type = RJ45
  3) Profile = Standard
  4) PCB Mounting Orientation = Side Entry (Right Angle)/Top Entry(Vertical)
2. Mechanical Attachment:
  1) Jack Configuration = 1 x 1
3. Electrical Characteristics:
  1) Shielded = Yes
4. Termination Related Features:
  1) EMI Finger - Bottom = Without
  2) Termination Method = Solder
5. Body Related Features:
  1) Port Configuration = Single/Multi
  2) EMI Fingers -Top and Sides = With/ Without
  3) Latch Orientation = Standard - Latch Down
  4) PCB Tail Length
6. Contact Related Features:
  1) Preloaded = Yes
  2) Contact Termination Type = Through Hole/Surface Mount
7. Housing Related Features:
  1) Connector Style = Jack
8. Industry Standards:
  1) RoHS/ELV Compliance = RoHS compliant, ELV compliant
  2) Lead Free Solder Processes = Wave solder capable to 240°C,
      Wave solder capable to 260°C, Wave solder capable to 265°C
      Reflow-Soldering Optional;
  3) RoHS/ELV Compliance History = Always was RoHS compliant
9. Identification Marking:
  1) Left LED Color (Position #1) = Green - 250 ohm resistor
  2) Right LED Color (Position #2) = Green - 250 ohm resistor
10. Conditions for Usage:
  1) Applies To = Printed Circuit Board
  2) Environmental Conditions = Office / Premises
  3) Operating Temperature (°C ) = 0 - 70/-40 - +85
11.Hipot:
     1500Vrms MIN Or More

Ethernet Applications


Designed to support applications, such as ADSL modems, LAN-on-Motherboard. Networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem,Call Center solutions , Complex set top boxes , VOIP gateways setup,Border Gateway Protocol,fast ethernet switch ...



Advantage

1840718-8 Low Profile TE Magjack
18 years production experience,
2600 staff,
100% test
Flexible delivery time

Famous Customer


Design for Ti , Intel , Samsung ,  Fluke , Jabil  , Flextronics ,Cypress, Freescale,EKF.......


EMS Components Sourcing

Built-in Flexible PCB Assembly; Rigid-Flexible PCB Assembly; Microelectronic, Flip Chip; Microelectronic, Chip On Board; Optoelectronic Assembly; RF / Wireless Assembly; Through Hole Assembly; Surface Mount Assembly; System Assembly; Printed Circuit Board Assembly


• Texas Instruments

LINK-PP is the preferred supplier of TI. Welcome to visit the TI website, you will look at our logo "LINK-PP" on BeagleBone Board.

J8064D668ANL 1X6 8p8c RJ45 Connector with 10/100 Base-T Integrated Magnetics
