Product Details
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: ISO9001,SGS,UL,CE,REACH

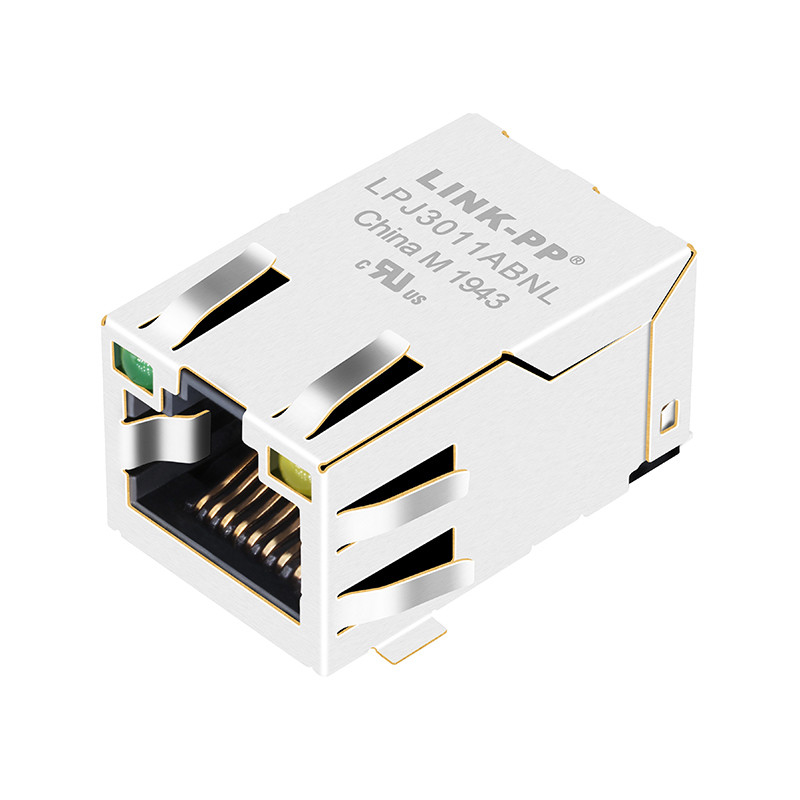

Model Number: LPJ3011ABNL
Payment & Shipping Terms
Minimum Order Quantity: 200/500 PCS
Price: Supportive
Packaging Details: Reel/Carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3000000/Month
Original: |
J3011G21DNLT |
Equivalent: |
LPJ3011ABNL |
Termination: |
Solder |
Samples: |
Available 2 Pcs |
File: |
PDF/3D/ISG/Stp/Step/Datasheet |
TEMPERATURE: |
0 TO 70 |
Original: |
J3011G21DNLT |
Equivalent: |
LPJ3011ABNL |
Termination: |
Solder |
Samples: |
Available 2 Pcs |
File: |
PDF/3D/ISG/Stp/Step/Datasheet |
TEMPERATURE: |
0 TO 70 |
| Pulse Part Number | J3011G21DNLT |
| Application-Lan | ETHERNET(NoN PoE) |
| AutomDX | YES |
| Bst Circuit | YES |
| Configuration RX | T,C |
| Configuration TX | T,C |
| Contact Mating Area Plating | GOLD 30u" |
| Cores per Port | 4 |
| LED Option | GREEN & YELLOW |
| Latch | TAB UP |
| Number of Ports | 1X1 |
| PCB | FR4 |
| PCB Mount Angle | Surface Mount |
| PCB Retaining Post | T POST |
| Package Height (Inches) | 0.535 |
| Package Height (mm) | 13.61 |
| Package Length (Inches) | 1.00 |
| Package Length (mm) | 25.40 |
| Package Width (Inches) | 0.633 |
| Package Width (mm) | 16.10 |
| Pin Type | THT SOLDER |
| RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search | YES |
| Shield EMI Tabs | Shielded |
| Speed | 10/100M |
| Temperature | 0 TO + 70 |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
