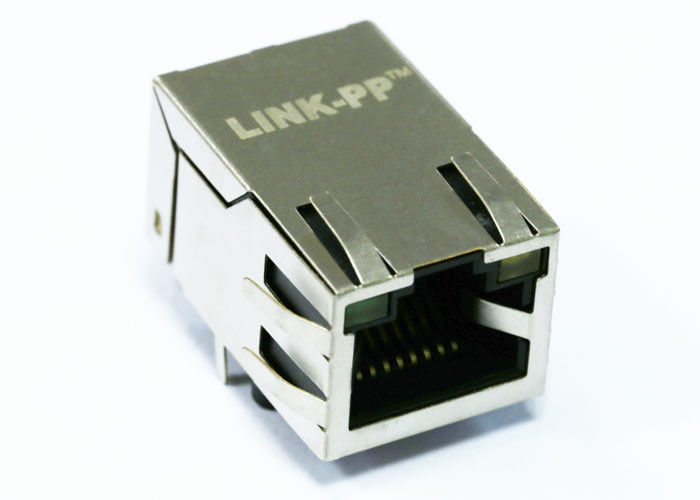

ARJM11C7-805-JJ-CW2 2.5G Base-T Shielded 1x1 Port 8P8C RJ45 Female Connector

Name: ARJM11C7-805-JJ-CW2 2.5G Base-T Shielded 1x1 Port 8P8C RJ45 Female Connector
Brand: LINK-PP
SKU: ARJM11C7-805-JJ-CW2
Price: 0.5 USD
Availability: InStock
Rating: 4.6 (130 reviews)

Product Details

Place of Origin: China

Brand Name: LINK-PP

Certification: UL,RoHS,Reach,ISO

Model Number: ARJM11C7-805-JJ-CW2

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/25K

Price: $0.5-$3.5

Packaging Details: Tray

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 180K/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                stacked rj45 connectors, shielded rj45 plugs


Specifications:	ARJM11C7-805-JJ-CW2	P N:	LPJXXXXXNL
Schematic:	8 Coils,1CT:1CT	Speed:	2.5GMbps X 1
Operating Temperature:	0°C ~ 70°C	LED Color:	Green, Yellow - Green, Yellow

Specifications:	ARJM11C7-805-JJ-CW2
P N:	LPJXXXXXNL
Schematic:	8 Coils,1CT:1CT
Speed:	2.5GMbps X 1
Operating Temperature:	0°C ~ 70°C
LED Color:	Green, Yellow - Green, Yellow

ARJM11C7-805-JJ-CW2 2.5G Base-T Shielded 1x1 Port 8P8C RJ45 Female Connector

ARJM11C7-805-JJ-CW2 2.5G Base-T Shielded 1x1 Port 8P8C RJ45 Female Connector

Part Status	Active
Connector Type	RJ45
Number of Ports	1
Number of Rows	1
Applications	2.5G Base-T, AutoMDIX
Mounting Type	Through Hole
Orientation	90° Angle (Right)
Termination	Solder
Height Above Board	0.543" (13.80mm)
LED Color	Green, Yellow - Green, Yellow
Number of Cores per Jack	8
Shielding	Shielded, EMI Finger
Features	Board Lock
Tab Direction	Up
Contact Material	-
Contact Finish	Gold
Operating Temperature	0°C ~ 70°C
Contact Finish Thickness	6.00µin (0.152µm)

Business partner

LINK-PP Is The Preferred Designer and Manufacturer of Intel, Intel MinnowBoard MAX Supported by LINK-PP Magnetic RJ45 PN#LPJG16314A4NL.

For any further information,Welcome to visit www.intel.com, you will find out our logo"LINK-PP" on MinnowBoard MAX .

RM3-ZZ-0078 RJ45 10/100/1000Base-TX 2x1 Jack with Magnetic LPJG17549B47NL

Description:

1. Product Type Features:

1) Product Type = Connector
2) Jack Type = RJ45
3) Profile = Standard
4) PCB Mounting Orientation = Side Entry (Right Angle)

2. Mechanical Attachment:
1) Jack Configuration = 1 x 1

3. Electrical Characteristics:
1) Shielded = Yes

4. Termination Related Features:
1) EMI Finger - Bottom = Without
2) Termination Method = Solder

5. Body Related Features:
1) Port Configuration = Single
2) EMI Fingers -Top and Sides = Without
3) Latch Orientation = Standard - Latch Up
4) PCB Tail Length

6. Contact Related Features:
1) Preloaded = Yes
2) Contact Termination Type = Through Hole

7. Housing Related Features:
1) Connector Style = Jack

8. Industry Standards:
1) RoHS/ELV Compliance = RoHS compliant, ELV compliant
2) Lead Free Solder Processes = Wave solder capable to 240°C,

Wave solder capable to 260°C, Wave solder capable to 265°C
3) RoHS/ELV Compliance History = Always was RoHS compliant

9. Identification Marking:
1) Left LED Color (Position #1) = Green - 250 ohm resistor
2) Right LED Color (Position #2) = Yellow - 250 ohm resistor

10. Conditions for Usage:
1) Applies To = Printed Circuit Board
2) Environmental Conditions = Office / Premises
3) Operating Temperature (°C ) = -40 - +85

Applications:

SCSI Terminations

Touch Screen Sensors

Display Filters and Films

Human Machine Interfaces

Competitive Advantage:

2600 staff,

100% test

Flexible delivery time
