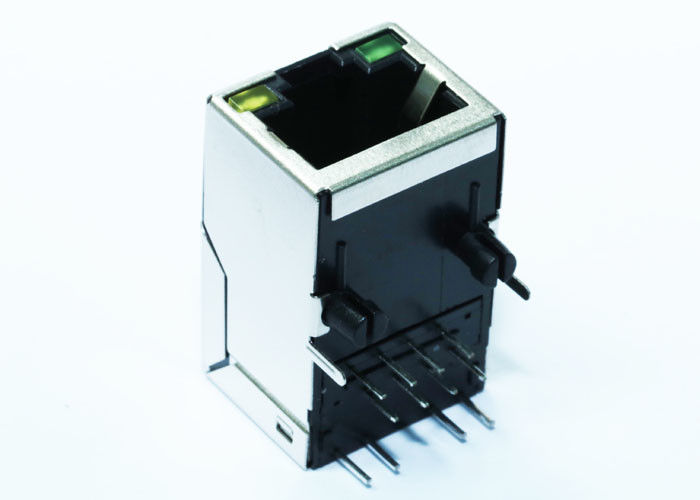

ARJM11D7-805-JJ-CW2 2.5G Base-T Single Port RJ45 Connector with Rectifier Bridge

ARJM11D7-805-JJ-CW2 2.5G Base-T Single Port RJ45 Connector with Rectifier Bridge
ARJM11D7-805-JJ-CW2 2.5G Base-T Single Port RJ45 Connector with Rectifier Bridge ARJM11D7-805-JJ-CW2 2.5G Base-T Single Port RJ45 Connector with Rectifier Bridge

Large Image :  ARJM11D7-805-JJ-CW2 2.5G Base-T Single Port RJ45 Connector with Rectifier Bridge

Product Details:
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: ARJM11D7-805-JJ-CW2
Payment & Shipping Terms:
Minimum Order Quantity: 50/500/1000/25K
Price: $0.5-$3.5
Packaging Details: Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 180K/Month
Detailed Product Description
Part Number: ARJM11D7-805-JJ-CW2 Mass Production: LPJXXXXNL
Original Munafactuer: LINK-PP Application: 2.5G Base-T
Termination: Solder LEDs: YELLOW/GREEN
High Light:

stacked rj45 connectors

,

shielded rj45 plugs

ARJM11D7-805-JJ-CW2 2.5G Base-T Single Port RJ45 Connector with Rectifier Bridge



Part Status Active
Connector Type RJ45
Number of Ports 1
Number of Rows 1
Applications 2.5G Base-T, AutoMDIX
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Height Above Board 0.543" (13.80mm)
LED Color Green, Yellow - Green, Yellow
Number of Cores per Jack 8
Shielding Shielded
Features Board Lock
Tab Direction Up
Contact Material -
Contact Finish Gold
Operating Temperature 0°C ~ 70°C
Contact Finish Thickness 6.00µin (0.152µm)
Shield Material -
Dielectric Material -



ARJM11D7-805-JJ-CW2 2.5G Base-T Single Port RJ45 Connector with Rectifier Bridge 0

Application field

1) MEDICAL

Diagnostic, Surgical Equipment, Patient Monitoring, Patient Monitoring, Hand Held Devices, Surgical Generators, In-Home Dialysis

2) NETWORKING

Data Center Switching, Routers, Servers & Server I/O, Server Blades,100G Core Switches,NIC Cards, 3U Top Rack & End of Rack, 40G Firewall, Patch Panels & Wiring Closet

3)TELECOM/DATACOM

Set-Top Boxes, Home Hub, Cell Phones, Satellites, Bay Stations, PBX, Optical Networking, Hand Held Devices

3) CONSUMER

Digital Cameras, Video Recorders, GPS-Navigation, Portable Media Players, Game Controllers, Projectors, LCD Televisions, Hand Held Devices

4) SECURITY

Control Panels, Fire Alarm Zones, Hand Held Devices

Business partner

LINK-PP Is The Preferred Designer and Manufacturer of Intel, Intel MinnowBoard MAX Supported by LINK-PP Magnetic RJ45 PN#LPJG16314A4NL.

For any further information,Welcome to visit www.intel.com, you will find out our logo"LINK-PP" on MinnowBoard MAX .

RM3-ZZ-0078 RJ45 10/100/1000Base-TX 2x1 Jack with Magnetic LPJG17549B47NL

Applications For Terminal User

Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem,Call Center solutions , Complex set top boxes , VOIP gateways setup,Border Gateway Protocol,fast ethernet switch ...



Competitive Advantage

18 years production experience,

2600 staff,

100% test

Flexible delivery time



Main Customer

Design for Ti , Intel , Samsung ,  Fluke , Jabil  , Flextronics ,Cypress, Freescale,EKF.......



EMS Application

Flexible PCB Assembly; Rigid-Flexible PCB Assembly; Microelectronic, Flip Chip; Microelectronic, Chip On Board; Optoelectronic Assembly; RF / Wireless Assembly; Through Hole Assembly; Surface Mount Assembly; System Assembly; Printed Circuit Board Assembly
