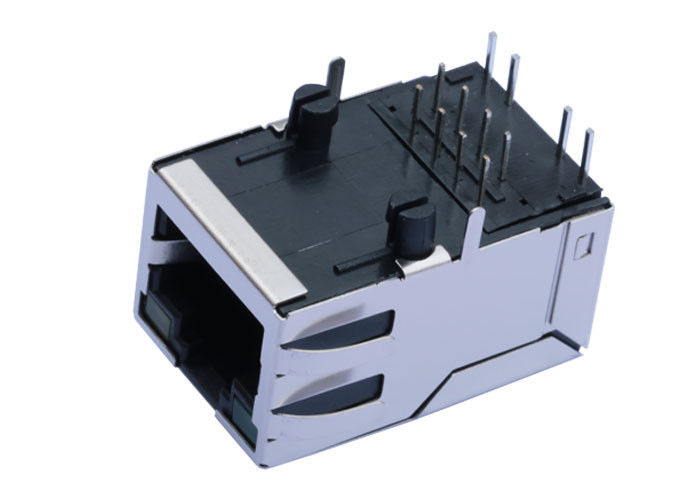

ARJM11C7-809-JJ-CW2 Tab Up Rj45 Modular Jack 2.5G Magnetics

ARJM11C7-809-JJ-CW2 Tab Up Rj45 Modular Jack 2.5G Magnetics
ARJM11C7-809-JJ-CW2 Tab Up Rj45 Modular Jack 2.5G Magnetics ARJM11C7-809-JJ-CW2 Tab Up Rj45 Modular Jack 2.5G Magnetics

Large Image :  ARJM11C7-809-JJ-CW2 Tab Up Rj45 Modular Jack 2.5G Magnetics

Product Details:
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: ARJM11C7-809-JJ-CW2
Payment & Shipping Terms:
Minimum Order Quantity: 50/500/1000/25K
Price: $0.5-$3.5
Packaging Details: Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 180K/Month
Detailed Product Description
LINK-PP Part Number: ARJM11C7-809-JJ-CW2 Speed: 2.5G BASE-T
LED: Green, Yellow - Green, Yellow Port: 1X1 Single
Cores: 8 Shielding: Shielded, EMI Finger
High Light:

stacked rj45 connectors

,

rj45 magnetic jack

ARJM11C7-809-JJ-CW2 Tab Up Rj45 Modular Jack 2.5G Magnetics



Part Status Active
Connector Type RJ45
Number of Ports 1
Number of Rows 1
Applications 2.5G Base-T, AutoMDIX
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Height Above Board 0.543" (13.80mm)
LED Color Green, Yellow - Green, Yellow
Number of Cores per Jack 8
Shielding Shielded, EMI Finger
Features Board Lock
Tab Direction Up
Contact Material -
Contact Finish Gold
Operating Temperature 0°C ~ 70°C
Contact Finish Thickness 6.00µin (0.152µm)



Applications:

Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem
