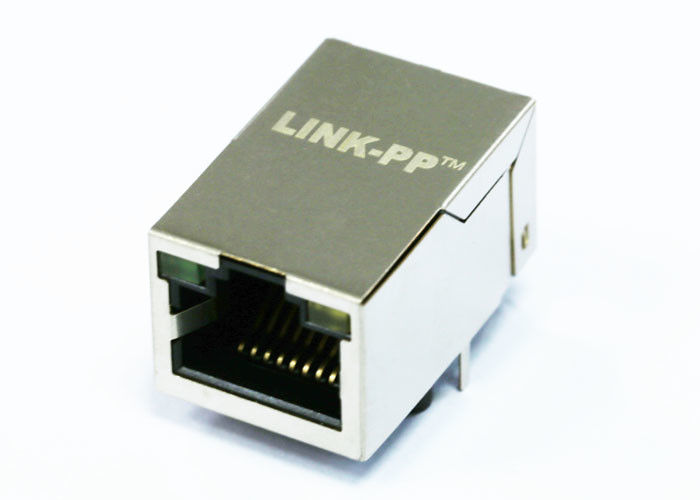

ARJM11D7-809-KK-CW2 2.5G Base-T RJ45 Modular Jack 8P8C Shielded With LED

ARJM11D7-809-KK-CW2 2.5G Base-T RJ45 Modular Jack 8P8C Shielded With LED
ARJM11D7-809-KK-CW2 2.5G Base-T RJ45 Modular Jack 8P8C Shielded With LED ARJM11D7-809-KK-CW2 2.5G Base-T RJ45 Modular Jack 8P8C Shielded With LED

Large Image :  ARJM11D7-809-KK-CW2 2.5G Base-T RJ45 Modular Jack 8P8C Shielded With LED

Product Details:
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: ARJM11D7-809-KK-CW2
Payment & Shipping Terms:
Minimum Order Quantity: 50/500/1000/25K
Price: $0.5-$3.5
Packaging Details: Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 180K/Month
Detailed Product Description
Features: Board Lock Specifications: ARJM11D7-809-KK-CW2
Samples: Free 3 Pcs LED Color: Green, Orange - Green, Orange
Port: 1x1 Single Shielding: Shielded
High Light:

stacked rj45 connectors

,

shielded rj45 plugs

ARJM11D7-809-KK-CW2 2.5G Base-T RJ45 Modular Jack 8P8C Shielded With LED
  1. RJ45 with leds ARJM11D7-809-KK-CW2
  2. 1X1 Tab-up 8P8C Connectors-rj45
  3. Through hole RJ45 modular jack
  4. Designed to meet IEEE802.3u requirement
  5. Available in all turn ratios used by LAN ICmanufactures
  6. Conserves minimizing PCB space
Other Part Number ARJM11D7-809-KK-CW2
Application-Lan ETHERNET(NoN PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port 8
Diodes With DIODES
LED Option Green, Orange - Green, Orange
Latch TAB UP
Number of Ports 1X1
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs With
Speed 2.5G Base-T
Temperature 0°C ~ 70°C
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT



Our Services
Customer Satisfaction:Please don't hesitate to contact us if you have any questions or concerns before or after your purchase. We are committed to your 100% satisfaction.

Payment Terms:There are many payment methods available such as TT/LC/DP/DA/Paypal/Western Union/MoneyGram

Return Policy:If you want to exchange your items received ,you must contact us within 5 days of the receipt of your order .And you should pay addtional shipping fees incurred and items returned should be kept in their original status.

Feedback:Since your feedback is very important to our busines's development ,we sincerely invite you to leave positive feedback for us if you are satisfied with our products and service ,it will just take you one minute .Thanks a lot !


Applications:
Workbenches and Workstations (Industrial)
Computer-on-Module (COM)
Relay Test Equipment
Through Hole Assembly

Competitive Advantage:
2600 staff,
100% test
Flexible delivery time



Business partner

LINK-PP Is The Preferred Designer and Manufacturer of Intel, Intel MinnowBoard MAX Supported by LINK-PP Magnetic RJ45 PN#LPJG16314A4NL.

For any further information,Welcome to visit www.intel.com, you will find out our logo"LINK-PP" on MinnowBoard MAX .

RM3-ZZ-0078 RJ45 10/100/1000Base-TX 2x1 Jack with Magnetic LPJG17549B47NL



FAQ

Q:Are you a factory or a trading company?

A:We are factory with 6 production line assembled workshop and a Stamping Workshop,about 200 employees.

Q: Can I get some samples?

A: Yes, sample order is available, some samples are free. and it will be freight collect payment.

Q : How long is your lead time?

A: Normally, our lead time is 10-25 days according to different products.

Q: What's your payment term?

A: We accept TT/LC/DP/DA/Paypal/Western Union/MoneyGram

Q: Why choose our company?

A: 1. Professional manufacturer since 1997, provide various kinds of connectors and LAN Transformer

2. No MOQ demand.

3. Good quality, competitive price with best service.

4. Available for ODM/OEM order.
