Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO

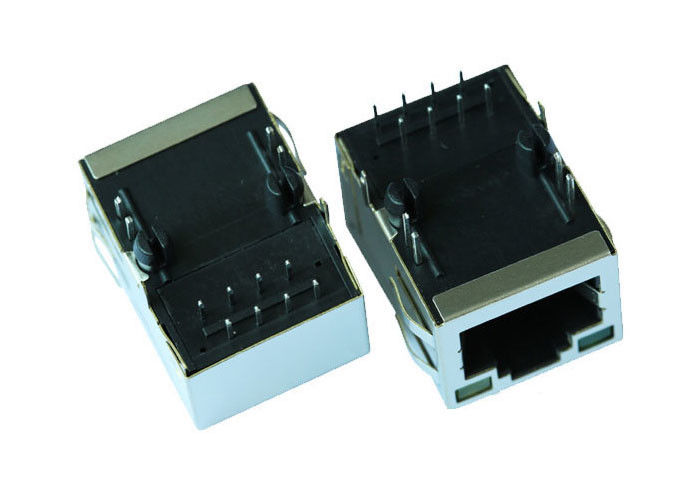

Model Number: ARJM11C7-805-JA-CW4
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.5-$3.5
Packaging Details: Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 180K/Month
Specification 1: |
ARJM11C7-805-JA-CW4 |
Apllication: |
2.5G Mbps |
Magnetic: |
Integrated |
Samples: |
Free |
Height Above Board: |
0.543" (13.80mm) |
LED Color: |
Green, Yellow - Green |
Specification 1: |
ARJM11C7-805-JA-CW4 |
Apllication: |
2.5G Mbps |
Magnetic: |
Integrated |
Samples: |
Free |
Height Above Board: |
0.543" (13.80mm) |
LED Color: |
Green, Yellow - Green |
Connector Type | RJ45 | |
---|---|---|
Number of Ports | 1 | |
Number of Rows | 1 | |
Applications | 2.5G Base-T, AutoMDIX | |
Mounting Type | Through Hole | |
Orientation | 90° Angle (Right) | |
Termination | Solder | |
Height Above Board | 0.543" (13.80mm) | |
LED Color | Green, Yellow - Green | |
Number of Cores per Jack | 8 | |
Shielding | Shielded, EMI Finger | |
Features | Board Lock | |
Tab Direction | Up | |
Contact Material | - | |
Contact Finish | Gold | |
Operating Temperature | 0°C ~ 70°C | |
Contact Finish Thickness | 30.0µin (0.76µm) | |
Shield Material | - | |
Dielectric Material | - |
