Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO

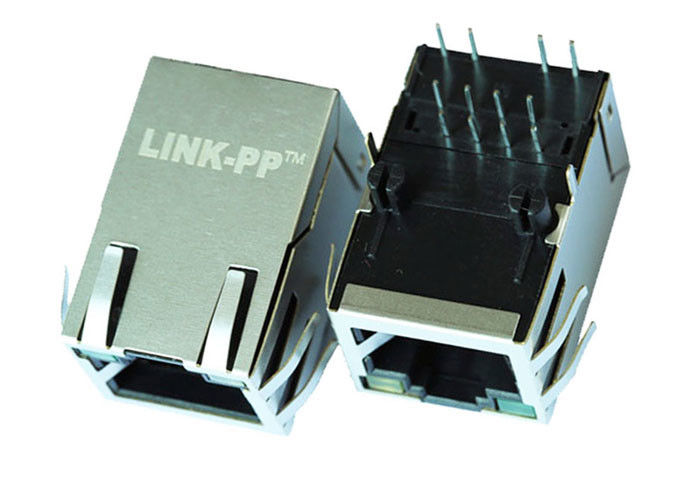

Model Number: ARJM11C7-809-JA-CW4
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.5-$3.5
Packaging Details: Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 180K/Month
Part Number: |
ARJM11C7-809-JA-CW4 |
Manufacturer: |
LINK-PP |
Latch: |
Tab Up |
Samples: |
Available 1-5 Pcs |
File: |
PDF/3D/ISG/Stp/Step/Datasheet |
Shielding: |
Shielded, EMI Finger |
Part Number: |
ARJM11C7-809-JA-CW4 |
Manufacturer: |
LINK-PP |
Latch: |
Tab Up |
Samples: |
Available 1-5 Pcs |
File: |
PDF/3D/ISG/Stp/Step/Datasheet |
Shielding: |
Shielded, EMI Finger |
| Part Status | Active | |
|---|---|---|
| Connector Type | RJ45 | |
| Number of Ports | 1 | |
| Number of Rows | 1 | |
| Applications | 2.5G Base-T, AutoMDIX | |
| Mounting Type | Through Hole | |
| Orientation | 90° Angle (Right) | |
| Termination | Solder | |
| Height Above Board | 0.543" (13.80mm) | |
| LED Color | Green, Yellow - Green | |
| Number of Cores per Jack | 8 | |
| Shielding | Shielded, EMI Finger | |
| Features | Board Lock | |
| Tab Direction | Up | |
| Contact Material | - | |
| Contact Finish | Gold | |
| Operating Temperature | 0°C ~ 70°C | |
| Contact Finish Thickness | 30.0µin (0.76µm) |
Why Choose Us
World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers
Main Customer
Design for Ti , Intel , Samsung , Fluke , Jabil , Flextronics ,Cypress, Freescale,EKF.......
Main Production Lines
• 10/100/1000/10GBase-T Lan Isolation Transformer and Filter
• Rj45 Modular Jack With Integrated 10/100/1000/10G Magnetics
• Magnetic Rj45 Jack with POE/POE+;IEEE823.3af/IEEE802.3at
• Lan Transformer With POE/POE+;IEEE823.3af/IEEE802.3at
• T1/E1,T3/DS3/E3/STS-1 Interface Lan transformer
• ISDN,HDSL,ADSL and VDSL Transformer and splitter
• Optical Transceivers
Professional Certification
• ISO 9001:2008
• UL Certification
• Reach Cetitifaction
• RoHS Compliance
• Active Environmental Policy
100% Guarantee Qualtiy
• Manufactured Under Strict Controls.
• 100% Tested (Not Just Batch Tested)
• LINK-PP Is OEM Of TE (Tyco) For 9 Years
• Successful Customer: Texas Instruments Samsung Cisco Siemens And Intel…
• LINK-PP Is The Preferred Supplier Of TI (Texas Instruments)
• Quality Guarantee:6 Years
Competitive Price And Service
• More Competitive Price Than Pulse Tyco Halo And Amphenol
• Delivery Time:2-3 Weeks After Orders
• Free Samples Are Available
• Provide New Design For Customer Requirements
• 90% Off Shipping Cost By DHL UPS DEDEX Or TNT
RJ45 knowledge science:
A registered jack (RJ) is a standardized physical network interface for connecting telecommunications or data equipment. The physical connectors that registered jacks use are mainly of the modular connector and 50-pin miniature ribbon connector types. The most common twisted-pair connector is an 8-position, 8-contact (8P8C) modular plug and jack commonly referred to as an RJ45 connector.
An 8-pin/8-position plug or jack is commonly used to connect computers onto Ethernet-based local area networks (LAN).
Two wiring schemes–T568A and T568B–are used to terminate the twisted-pair cable onto the connector interface.
FAQ
Q:Are you a factory or a trading company?
A:We are factory with 6 production line assembled workshop and a Stamping Workshop,about 200 employees.
Q: Can I get some samples?
A: Yes, sample order is available, some samples are free. and it will be freight collect payment.
Q : How long is your lead time?
A: Normally, our lead time is 10-25 days according to different products.
Q: What's your payment term?
A: We accept TT/LC/DP/DA/Paypal/Western Union/MoneyGram
Q: Why choose our company?
A: 1. Professional manufacturer since 1997, provide various kinds of connectors and LAN Transformer
2. No MOQ demand.
3. Good quality, competitive price with best service.
4. Available for ODM/OEM order.
