ARJM11A1-809-AN-CW2 RJ45 Single Port 2.5 Gigabit Ethernet Jack with 8 Cores

China ARJM11A1-809-AN-CW2 RJ45 Single Port 2.5 Gigabit Ethernet Jack with 8 Cores supplier

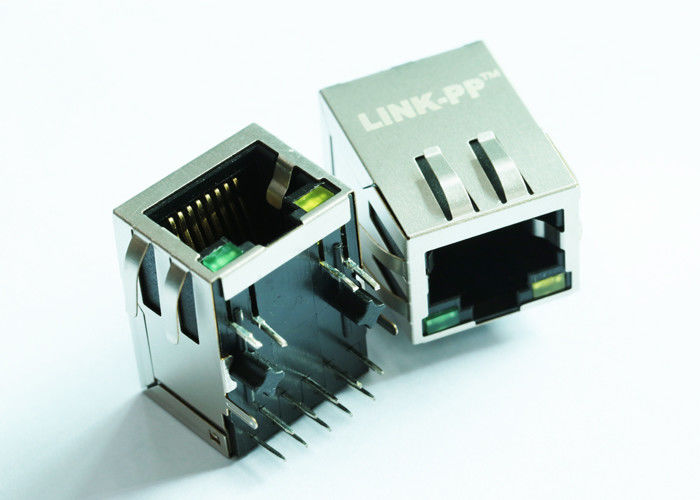

Large Image :  ARJM11A1-809-AN-CW2 RJ45 Single Port 2.5 Gigabit Ethernet Jack with 8 Cores

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: SGS,ISO,UL,Reach,RoHS
Model Number: ARJM11A1-809-AN-CW2

Payment & Shipping Terms:

Minimum Order Quantity: 500/1200
Price: Supportive
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock or 3-4 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 250000-320000/Month
Contact Now
Detailed Product Description
Part N: ARJM11A1-809-AN-CW2 Mass Production: LPJKXXXXNL
Application: 2.5G Base-T Termination: Solder
LEDs: Optional Part NuMount Stylember2: DIP / Side Entry

ARJM11A1-809-AN-CW2 RJ45 Single Port 2.5 Gigabit Ethernet Jack with 8 Cores

Quick Details

  • 2.5 Gigabit Ethernet RJ45
  • IEEE802.3ab Compliant
  • 350uH min OCL at 8mA DC Bias Across the Full Temp Range
  • Compatible with Current and Voltage Drive PHY’s
  • 100% Compliance Testing
  • 1500Vrms Hi-Pot
  • Short Body Style also Available
  • Designing Model : ARJM11A1-809-AN-CW2
  • Mass Production Model : LPJXXXXNL



Part Status Active
Connector Type RJ45
Number of Ports 1
Number of Rows 1
Applications 2.5G Base-T, AutoMDIX
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Height Above Board 0.535" (13.59mm)
LED Color Green
Number of Cores per Jack 8
Shielding Shielded, EMI Finger
Features Board Lock
Tab Direction Down
Contact Material -
Contact Finish Gold
Operating Temperature 0°C ~ 70°C
Contact Finish Thickness 6.00µin (0.152µm)
Shield Material -
Dielectric Material -


Applications For Terminal User

Designed to support applications, such as ADSL modems, LAN-on-Motherboard. Networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem,Call Center solutions , Complex set top boxes , VOIP gateways setup,Border Gateway Protocol,fast ethernet switch ...


Competitive Advantage

18 years production experience,

2600 staff,

100% test

Flexible delivery time


Main Customer

Design for Ti , Intel , Samsung ,  Fluke , Jabil  , Flextronics ,Cypress, Freescale,EKF.......


EMS Application

Built-in Flexible PCB Assembly; Rigid-Flexible PCB Assembly; Microelectronic, Flip Chip; Microelectronic, Chip On Board; Optoelectronic Assembly; RF / Wireless Assembly; Through Hole Assembly; Surface Mount Assembly; System Assembly; Printed Circuit Board Assembly


Business partner

LINK-PP Is The Preferred Designer and Manufacturer of Intel, Intel MinnowBoard MAX Supported by LINK-PP Magnetic RJ45 PN#LPJG16314A4NL.

For any further information,Welcome to visit www.intel.com, you will find out our logo"LINK-PP" on MinnowBoard MAX .

G24104DUGX 1000 BASE-T Ethernet Lan Transformer Modules With POE+ LP82487PNL



1.When will you ship the goods out if i send payment now?
Usually ,We will delivery out them 2-3 Week later after payment recevied.if the PO is very big ,we need more time to produce .
2.Is your goods tested before shipping?
Yes,we test every item at least 3 times before shipping,please do not worry about the quality problems,you can buy with confidence.
3.I am new buyer ,how can i buy from you?
You tell us what you need ,we send you offer,if you think the offer is good,our sales send you company invoice including all details such as payment terms ect ,then we ship to you
