Home > products > Magnetic RJ45 Jack > ARJM11A1-805-AD-CW2 RJ45 Single Port 1x 2.5G Mbps Ethernet Connector

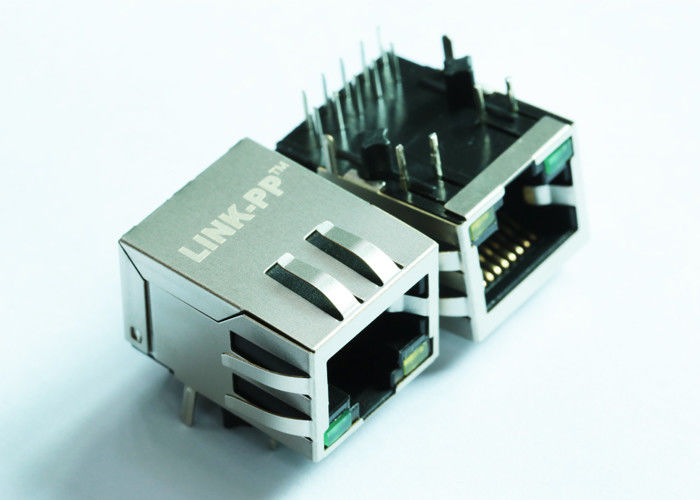

ARJM11A1-805-AD-CW2 RJ45 Single Port 1x 2.5G Mbps Ethernet Connector

Product Details

Place of Origin: Guangdong,China

Brand Name: LINK-PP

Certification: UL,RoHS,Reach,ISO

Model Number: ARJM11A1-805-AD-CW2

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/25K

Price: $0.5-$3.5

Packaging Details: Tray

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 180K/Month

Get Best Price
Highlight:

stacked rj45 connectors

,

rj45 magnetic jack

Specification:
ARJM11A1-805-AD-CW2
Part No:
LPJxxxxxNL
Ethernet:
2.5G Mbps Lan
Turn Ratio:
1CT:1CT
Mounting:
Right Angle 90 Degree
Samples:
Available
Specification:
ARJM11A1-805-AD-CW2
Part No:
LPJxxxxxNL
Ethernet:
2.5G Mbps Lan
Turn Ratio:
1CT:1CT
Mounting:
Right Angle 90 Degree
Samples:
Available
ARJM11A1-805-AD-CW2 RJ45 Single Port 1x 2.5G Mbps Ethernet Connector
ARJM11A1-805-AD-CW2 RJ45 Single Port 1x 2.5G Mbps Ethernet Connector
  • RJ45 1x 2.5G Mbps Ethernet Latch-down
  • Angled Rj45 Connector 2.5G base-tx Ethernet
  • Telecom transformers and RJ45 modules
  • WithLED Indicator
Connector Type RJ45
Number of Ports 1
Number of Rows 1
Applications 2.5G Base-T, AutoMDIX
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Height Above Board 0.535" (13.59mm)
LED Color Green - Orange
Number of Cores per Jack 8
Shielding Shielded, EMI Finger
Features Board Lock
Tab Direction Down
Contact Material -
Contact Finish Gold
Operating Temperature 0°C ~ 70°C
Contact Finish Thickness 6.00µin (0.152µm)



Applications For Terminal User
Designed to support applications, such as ADSL modems, LAN-on-Motherboard. Networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem,Call Center solutions , Complex set top boxes , VOIP gateways setup,Border Gateway Protocol,fast ethernet switch ...



Competitive Advantage
18 years production experience,
2600 staff,
100% test
Flexible delivery time



Main Customer
Design for Ti , Intel , Samsung , Fluke , Jabil , Flextronics ,Cypress, Freescale,EKF.......

J3011G21DNLT SMT 1x1 Port RJ45 Magjack Connector With 10/100M

J3011G21DNLT SMT 1x1 Port RJ45 Magjack Connector With 10/100M

EMS ApplicationBuilt-in Flexible PCB Assembly; Rigid-Flexible PCB Assembly; Microelectronic, Flip Chip; Microelectronic, Chip On Board; Optoelectronic Assembly; RF / Wireless Assembly; Through Hole Assembly; Surface Mount Assembly; System Assembly; Printed Circuit Board Assembly



FAQ

1. How can i get a sample?

A:just check with our sales.

2.How to develop a new product base on an idea?

A: Tell us what you want, Then we will design it for free.

3.How about OED,ODM?

A: 15years experiences in OEM,ODM.

4.How to reduce your risk?

A: Check the sample before order.

5.How about the after-sale service?

A: Just tell us the problem after you receive the products.

Then we’ll help you deal with it together.
