ARJM11B3-805-AB-CW2 Tab Down Network RJ45 Single Port 8p8c Connectors

China ARJM11B3-805-AB-CW2 Tab Down Network RJ45 Single Port 8p8c Connectors supplier
ARJM11B3-805-AB-CW2 Tab Down Network RJ45 Single Port 8p8c Connectors supplier ARJM11B3-805-AB-CW2 Tab Down Network RJ45 Single Port 8p8c Connectors supplier ARJM11B3-805-AB-CW2 Tab Down Network RJ45 Single Port 8p8c Connectors supplier

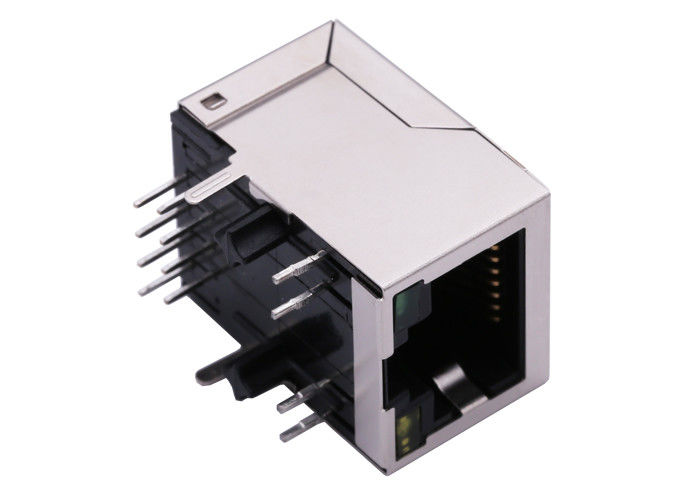

Large Image :  ARJM11B3-805-AB-CW2 Tab Down Network RJ45 Single Port 8p8c Connectors

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: SGS,ISO,UL,Reach,RoHS
Model Number: ARJM11B3-805-AB-CW2

Payment & Shipping Terms:

Minimum Order Quantity: 500/1200
Price: Supportive
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock or 4-5 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 350000-400000/Month
Contact Now
Detailed Product Description
Specification: ARJM11B3-805-AB-CW2 P/N: LPJXXXXNL
Jack Type: RJ45 Female Filter: 1x2.5G Magnetics
Samples: Available 2 Pcs LED(L/R): Green - Yellow

ARJM11B3-805-AB-CW2 Tab Down Network RJ45 Single Port 8p8c Connectors
  1. 1x1 Tab-Down 10/100BASE-TX RJ45 ARJM11B3-805-AB-CW2
  2. Through hole RJ45 modular jack
  3. IEEE802.3u Compliant
  4. 350uH min OCL at 8mA DC Bias Across the
  5. 100% Electrical Testing
  6. 1500Vrms Hi-Pot
  7. Proprietary Robust Contact Design
Part Status Active
Connector Type RJ45
Number of Ports 1
Number of Rows 1
Applications 2.5G Base-T, AutoMDIX
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Height Above Board 0.535" (13.59mm)
LED Color Green - Yellow
Number of Cores per Jack 8
Shielding Shielded
Features Board Lock
Tab Direction Down
Contact Material -
Contact Finish Gold
Operating Temperature 0°C ~ 70°C
Contact Finish Thickness 6.00µin (0.152µm)



Applications For Terminal User
Designed to support applications, such as ADSL modems, LAN-on-Motherboard. Networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem,Call Center solutions , Complex set top boxes , VOIP gateways setup,Border Gateway Protocol,fast ethernet switch ...



Competitive Advantage
18 years production experience,
2600 staff,
100% test
Flexible delivery time



Main Customer
Design for Ti , Intel , Samsung , Fluke , Jabil , Flextronics ,Cypress, Freescale,EKF.......
