Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO

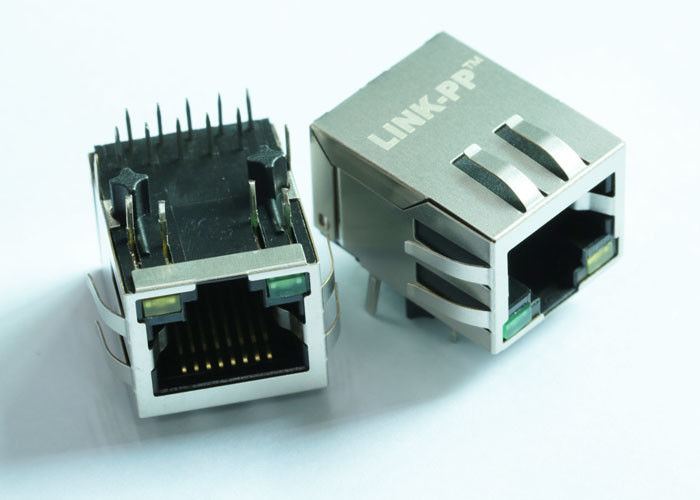

Model Number: ARJM11A3-809-AD-CW2
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.5-$3.5
Packaging Details: Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 180K/Month
Specification: |
ARJM11A3-809-AD-CW2 |
Part No: |
LPJXXXXXNL |
Ethernet: |
1x2.5G Mbps |
Samples: |
Available |
File: |
PDF/3D/ISG/Stp/Step/Datasheet |
Shielding: |
Shielded, EMI Finger |
Specification: |
ARJM11A3-809-AD-CW2 |
Part No: |
LPJXXXXXNL |
Ethernet: |
1x2.5G Mbps |
Samples: |
Available |
File: |
PDF/3D/ISG/Stp/Step/Datasheet |
Shielding: |
Shielded, EMI Finger |
| Part Status | Active | |
|---|---|---|
| Connector Type | RJ45 | |
| Number of Ports | 1 | |
| Number of Rows | 1 | |
| Applications | 2.5G Base-T, AutoMDIX | |
| Mounting Type | Through Hole | |
| Orientation | 90° Angle (Right) | |
| Termination | Solder | |
| Height Above Board | 0.535" (13.59mm) | |
| LED Color | Green - Orange | |
| Number of Cores per Jack | 8 | |
| Shielding | Shielded, EMI Finger | |
| Features | Board Lock | |
| Tab Direction | Down | |
| Contact Material | - | |
| Contact Finish | Gold | |
| Operating Temperature | 0°C ~ 70°C | |
| Contact Finish Thickness | 6.00µin (0.152µm) |
Features
◎ RoHS Compliant
◎ Fully shielded magnetics protect data from internally generated digital noise
◎ Reduces the overall length of the signal path for improved common mode performance
◎ Implements full common mode termination scheme with used and unused twisted pairs
◎ Meets IEEE802.3 Baseline Wander Compensation specification
◎ Integrates high voltage capacitor to chassis ground
◎ Supports all major transceivers with matched turns ration and complete integration of specified
termination
◎ Design for 100base-tx transmission over UTP-5 cable
◎ Operating TEMP. range:-40 ℃ to +85 ℃
◎ Storage TEMP. range:-55 ℃ to +125 ℃
◎ Primary OCL inductance: 350µH MIN. at 100KHz/0.1Vrms 8mA DC bias
• Texas Instruments
LINK-PP is the preferred supplier of TI.
Welcome to visit the TI website: http://www.ti.com/tool/beaglebk#0
You will look at our logo "LINK-PP" on BeagleBone Board.
FAQ
1. How can i get a sample?
A:just check with our sales.
2.How to develop a new product base on an idea?
A: Tell us what you want, Then we will design it for free.
3.How about OED,ODM?
A: 15years experiences in OEM,ODM.
4.How to reduce your risk?
A: Check the sample before order.
5.How about the after-sale service?
A: Just tell us the problem after you receive the products.
Then we’ll help you deal with it together.
