ARJM11A1-805-JA-CW2 Single Port RJ45 Connector 2.5G Base-T Ethernet Application

China ARJM11A1-805-JA-CW2 Single Port RJ45 Connector 2.5G Base-T Ethernet Application supplier
ARJM11A1-805-JA-CW2 Single Port RJ45 Connector 2.5G Base-T Ethernet Application supplier ARJM11A1-805-JA-CW2 Single Port RJ45 Connector 2.5G Base-T Ethernet Application supplier

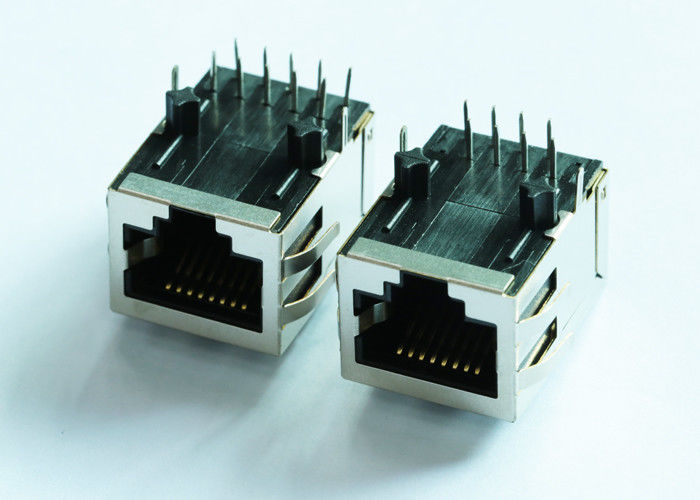

Large Image :  ARJM11A1-805-JA-CW2 Single Port RJ45 Connector 2.5G Base-T Ethernet Application

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: SGS,ISO,UL,Reach,RoHS
Model Number: ARJM11A1-805-JA-CW2

Payment & Shipping Terms:

Minimum Order Quantity: 500/1200
Price: Supportive
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock or 3 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 250000-320000/Month
Contact Now
Detailed Product Description
Midcom PN: ARJM11A1-805-JA-CW2 Made In China: SM-LPJxxxxxNL
Application: Embedded Computing Category: Rj45 Magnetics
Port: Single With LEDs Samples: Available

ARJM11A1-805-JA-CW2 Single Port RJ45 Connector 2.5G Base-T Ethernet Application

Part Status Active
Connector Type RJ45
Number of Ports 1
Number of Rows 1
Applications 2.5G Base-T, AutoMDIX
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Height Above Board 0.535" (13.59mm)
LED Color Green, Yellow - Green
Number of Cores per Jack 8
Shielding Shielded, EMI Finger
Features Board Lock
Tab Direction Down
Contact Material -
Contact Finish Gold
Operating Temperature 0°C ~ 70°C
Contact Finish Thickness 6.00µin (0.152µm)



ARJM11A1-805-JA-CW2 Electrical Specifications

  1. 2.5G Base-T Ethernet Application
  2. Impedance: 100OHMS
  3. RJ45 jack cavity conforms to FCC rules and regulations Part 68, SUB Part F
  4. Available in other Circuit Designs
  5. Industrial Operating Temp: 0ºC to 70ºC
  6. Contact Factory for Standard Temp.
  7. Optional Gold Plating Thickness
  8. Other LED Patterns available

• Main Customer Design for Ti , Intel , Samsung , Fluke , Jabil , Flextronics ,Cypress, Freescale,EKF.......

PCB SMT Mountings RJ45 Magjack Connector 1x1 Port J0C-0004NLT Without LED LPJ19113CNL

• Applications For Terminal UserDesigned to support applications, such as ADSL modems, LAN-on-Motherboard. Networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem,Call Center solutions , Complex set top boxes , VOIP gateways setup,Border Gateway Protocol,fast ethernet switch ...

• Competitive Advantage 2600 staff,100% testFlexible delivery time

• EMS Application Built-in Flexible PCB Assembly; Rigid-Flexible PCB Assembly; Microelectronic, Flip Chip; Microelectronic, Chip On Board; Optoelectronic Assembly; RF / Wireless Assembly; Through Hole Assembly; Surface Mount Assembly; System Assembly; Printed Circuit Board Assembly
