ARJM11B1-805-JA-CW2 RJ45 1x1 Magnetic Jack With 2.5G BaseT Tab Down

China ARJM11B1-805-JA-CW2 RJ45 1x1 Magnetic Jack With 2.5G BaseT Tab Down supplier
ARJM11B1-805-JA-CW2 RJ45 1x1 Magnetic Jack With 2.5G BaseT Tab Down supplier ARJM11B1-805-JA-CW2 RJ45 1x1 Magnetic Jack With 2.5G BaseT Tab Down supplier

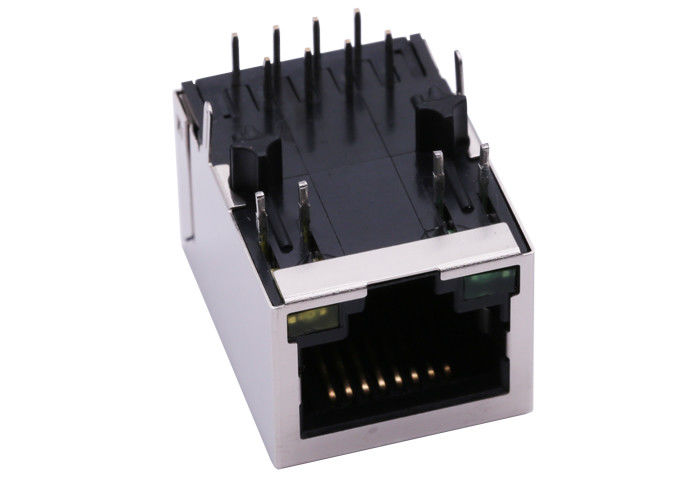

Large Image :  ARJM11B1-805-JA-CW2 RJ45 1x1 Magnetic Jack With 2.5G BaseT Tab Down

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: SGS,ISO,UL,Reach,RoHS
Model Number: ARJM11B1-805-JA-CW2

Payment & Shipping Terms:

Minimum Order Quantity: 500/1200
Price: Supportive
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock or 3 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 250000-320000/Month
Contact Now
Detailed Product Description
Designe PN#: ARJM11B1-805-JA-CW2 Samples: Available Free
Orientation: 90° Angle (Right) Interface: 2.5G Base-T, AutoMDIX
LED: Flexible Made In China: SM-LPJXXXXNL

ARJM11B1-805-JA-CW2 RJ45 1x1 Magnetic Jack With 2.5G BaseT Tab Down



Part Status Active
Connector Type RJ45
Number of Ports 1
Number of Rows 1
Applications 2.5G Base-T, AutoMDIX
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Height Above Board 0.535" (13.59mm)
LED Color Green, Yellow - Green
Number of Cores per Jack 8
Shielding Shielded
Features Board Lock
Tab Direction Down
Contact Material -
Contact Finish Gold
Operating Temperature 0°C ~ 70°C
Contact Finish Thickness 6.00µin (0.152µm)



  1. 2.5G Base-T Ethernet Application
  2. Impedance: 100OHMS
  3. RJ45 jack cavity conforms to FCC rules
  4. and regulations Part 68, SUB Part F
  5. Available in other Circuit Designs
  6. Standard Operating Temp: 0ºC to +70ºC
  7. Optional Gold Plating Thickness
  8. Other LED Patterns available
