ARJM11B3-809-JA-CW2 1 Port 8P8C Rj45 2.5G M-bit Magnetics Jack With LEDs

China ARJM11B3-809-JA-CW2 1 Port 8P8C Rj45 2.5G M-bit Magnetics Jack With LEDs supplier
ARJM11B3-809-JA-CW2 1 Port 8P8C Rj45 2.5G M-bit Magnetics Jack With LEDs supplier ARJM11B3-809-JA-CW2 1 Port 8P8C Rj45 2.5G M-bit Magnetics Jack With LEDs supplier

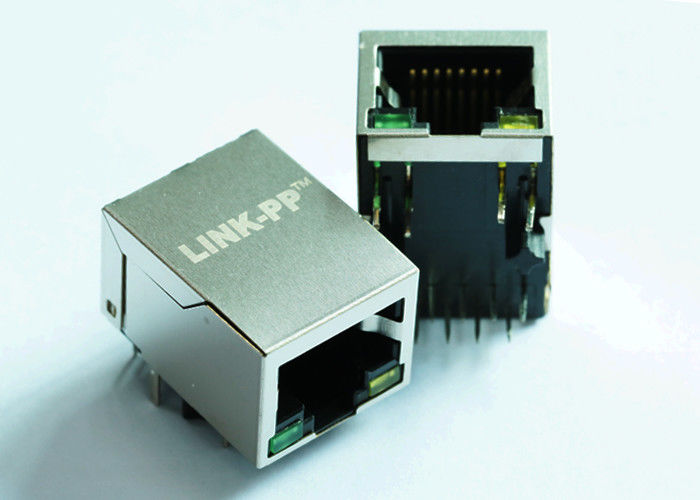

Large Image :  ARJM11B3-809-JA-CW2 1 Port 8P8C Rj45 2.5G M-bit Magnetics Jack With LEDs

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: SGS,ISO,UL,Reach,RoHS
Model Number: ARJM11B3-809-JA-CW2

Payment & Shipping Terms:

Minimum Order Quantity: 500/1200
Price: Supportive
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock or 3 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 250000-320000/Month
Contact Now
Detailed Product Description
Specification: ARJM11B3-809-JA-CW2 Part No: LPJxxxxxNL
Ethernet: 1x2.5GMbps Indicator: Green, Yellow - Green
Mounting: R/A Shield Samples: Available Free

ARJM11B3-809-JA-CW2 1 Port 8P8C Rj45 2.5G M-bit Magnetics Jack With LEDs
  • 1x Fast Ethernet (10/100) : LPJxxxxxNL
  • 8P8C Rj45 Magnetic Connector ARJM11B3-809-JA-CW2
  • Cross Equivalent ARJM11B3-809-JA-CW2 Pin to Pin Replace Cost-Effective
  • 0℃ TO 70℃ : LPJxxxxxNL
Part StatusActive
Connector TypeRJ45
Number of Ports1
Number of Rows1
Applications2.5G Base-T, AutoMDIX
Mounting TypeThrough Hole
Orientation90° Angle (Right)
TerminationSolder
Height Above Board0.535" (13.59mm)
LED ColorGreen, Yellow - Green
Number of Cores per Jack8
ShieldingShielded
FeaturesBoard Lock
Tab DirectionDown
Contact Material-
Contact FinishGold
Operating Temperature0°C ~ 70°C
Contact Finish Thickness6.00µin (0.152µm)



Ethernet Applications


Designed to support applications, such as ADSL modems, LAN-on-Motherboard. Networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem,Call Center solutions , Complex set top boxes , VOIP gateways setup,Border Gateway Protocol,fast ethernet switch ...


Advantage

1840718-8 Low Profile TE Magjack
18 years production experience,
2600 staff,
100% test
Flexible delivery time
Famous Customer


Design for Ti , Intel , Samsung , Fluke , Jabil , Flextronics ,Cypress, Freescale,EKF.......


EMS Components Sourcing

Built-in Flexible PCB Assembly; Rigid-Flexible PCB Assembly; Microelectronic, Flip Chip; Microelectronic, Chip On Board; Optoelectronic Assembly; RF / Wireless Assembly; Through Hole Assembly; Surface Mount Assembly; System Assembly; Printed Circuit Board Assembly


Other Part Number

ARJM11B3-809-AN-CW2ARJM11A3-809-AN-CW2ARJM11B3-805-AN-CW2
ARJM11A3-805-AN-CW2ARJM11B1-809-AN-CW2ARJM11A1-809-AN-CW2
ARJM11B1-805-AN-CW2ARJM11B1-809-NN-CW2ARJM11A1-809-NN-CW2
ARJM11B1-805-NN-EW2ARJM11A1-805-NN-EW2ARJM11D7-809-KK-CW4
ARJM11C7-809-KK-CW4ARJM11D7-805-KK-CW4ARJM11C7-805-KK-CW4
