Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO

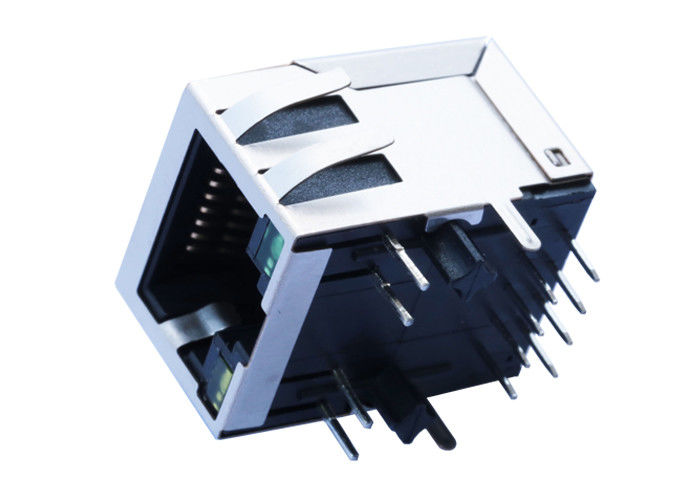

Model Number: ARJM11A3-809-KK-CW2
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.5-$3.5
Packaging Details: Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 180K/Month
Specification: |
ARJM11A3-809-KK-CW2 |
Part No: |
LPJxxxxxNL |
Ethernet: |
2.5G Mbps Lan |
Turn Ratio: |
1CT:1CT |
Mounting: |
Right Angle 90 Degree |
Samples: |
Available |
Specification: |
ARJM11A3-809-KK-CW2 |
Part No: |
LPJxxxxxNL |
Ethernet: |
2.5G Mbps Lan |
Turn Ratio: |
1CT:1CT |
Mounting: |
Right Angle 90 Degree |
Samples: |
Available |
| Part Status | Active | |
|---|---|---|
| Connector Type | RJ45 | |
| Number of Ports | 1 | |
| Number of Rows | 1 | |
| Applications | 2.5G Base-T, AutoMDIX | |
| Mounting Type | Through Hole | |
| Orientation | 90° Angle (Right) | |
| Termination | Solder | |
| Height Above Board | 0.535" (13.59mm) | |
| LED Color | Green, Orange - Green, Orange | |
| Number of Cores per Jack | 8 | |
| Shielding | Shielded, EMI Finger | |
| Features | Board Lock | |
| Tab Direction | Down | |
| Contact Material | - | |
| Contact Finish | Gold | |
| Operating Temperature | 0°C ~ 70°C | |
| Contact Finish Thickness | 6.00µin (0.152µm) |
Other Part Number
| ARJM11B1-805-NN-ER2-T | ARJM11A1-805-NN-ER2-T | ARJM11D7-809-NN-EW4 |
| ARJM11C7-809-NN-EW4 | ARJM11D7-805-NN-EW4 | ARJM11C7-805-NN-EW4 |
| ARJM11B3-809-AN-CW4 | ARJM11A3-809-AN-CW4 | ARJM11B3-805-AN-CW4 |
| ARJM11A3-805-AN-CW4 | ARJM11B1-809-AN-CW4 | ARJM11A1-809-AN-CW4 |
| ARJM11B1-805-AN-CW4 | ARJM11A1-805-AN-CW4 | ARJM11B1-805-KB-CW2 |
