ARJM11A1-805-AB-CW4 2.5G Base - T Single Port RJ45 Ethernet Jack With LEDs 8 Pin

ARJM11A1-805-AB-CW4 2.5G Base - T Single Port RJ45 Ethernet Jack With LEDs 8 Pin
ARJM11A1-805-AB-CW4 2.5G Base - T Single Port RJ45 Ethernet Jack With LEDs 8 Pin ARJM11A1-805-AB-CW4 2.5G Base - T Single Port RJ45 Ethernet Jack With LEDs 8 Pin ARJM11A1-805-AB-CW4 2.5G Base - T Single Port RJ45 Ethernet Jack With LEDs 8 Pin

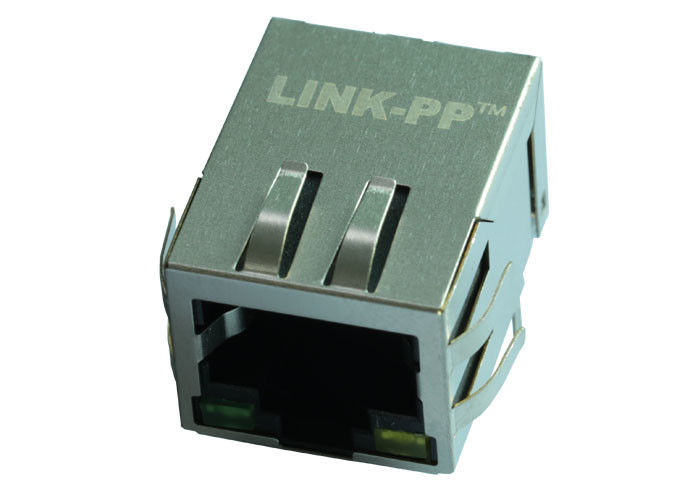

Large Image :  ARJM11A1-805-AB-CW4 2.5G Base - T Single Port RJ45 Ethernet Jack With LEDs 8 Pin

Product Details:
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: ARJM11A1-805-AB-CW4
Payment & Shipping Terms:
Minimum Order Quantity: 50/500/1000/25K
Price: $0.05-$1.28
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 4200K-PCS/Month
Detailed Product Description
Part Number: ARJM11A1-805-AB-CW4 Original Munafactuer: LINK-PP
Application: 2.5G Base-T Termination: Solder
LEDs: Green - Yellow Sample: Free
High Light:

rj-45 ethernet jack

,

industrial rj45 connector

ARJM11A1-805-AB-CW4 2.5G Base - T Single Port RJ45 Ethernet Jack With LEDs 8 Pin



Part Status Active
Connector Type RJ45
Number of Ports 1
Number of Rows 1
Applications 2.5G Base-T, AutoMDIX
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Height Above Board 0.535" (13.59mm)
LED Color Green - Yellow
Number of Cores per Jack 8
Shielding Shielded, EMI Finger
Features Board Lock
Tab Direction Down
Contact Material -
Contact Finish Gold
Operating Temperature 0°C ~ 70°C
Contact Finish Thickness 30.0µin (0.76µm)

ARJM11A1-805-AB-CW4 2.5G Base - T Single Port RJ45 Ethernet Jack With LEDs 8 Pin 0

Applications For Terminal User

Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem,Call Center solutions , Complex set top boxes , VOIP gateways setup,Border Gateway Protocol,fast ethernet switch ...



Competitive Advantage

18 years production experience,

2600 staff,

100% test

Flexible delivery time



Main Customer

Design for Ti , Intel , Samsung ,  Fluke , Jabil  , Flextronics ,Cypress, Freescale,EKF.......



EMS Application

Flexible PCB Assembly; Rigid-Flexible PCB Assembly; Microelectronic, Flip Chip; Microelectronic, Chip On Board; Optoelectronic Assembly; RF / Wireless Assembly; Through Hole Assembly; Surface Mount Assembly; System Assembly; Printed Circuit Board Assembly



Business Partner

Texas Instruments

LINK-PP is the preferred supplier of TI.

Welcome to visit the TI website: http://www.ti.com/tool/beaglebk#0

You will look at our logo "LINK-PP" on BeagleBone Board.

ML36T02RS Dual Ports Gigabit Ethernet Transformer Module THT LP83601NL



Other Part Number

ARJM11B1-805-NN-ER2-T ARJM11A1-805-NN-ER2-T ARJM11D7-809-NN-EW4
ARJM11C7-809-NN-EW4 ARJM11D7-805-NN-EW4 ARJM11C7-805-NN-EW4
ARJM11B3-809-AN-CW4 ARJM11A3-809-AN-CW4 ARJM11B3-805-AN-CW4
ARJM11A3-805-AN-CW4 ARJM11B1-809-AN-CW4 ARJM11A1-809-AN-CW4
ARJM11B1-805-AN-CW4 ARJM11A1-805-AN-CW4 ARJM11B1-805-KB-CW2
